Inlet grate in cast iron frame

D400 - heavy traffic loads

series
orange-d400.svg> orange-truck.svg>
Code KM18P
Material Cast iron
Weight 36 kg
Norm EN124-2
Package 24 ks/pal

Grate 300x500mm for street gullies.

Cover

  • Hinge secured with pivot preventing removal from frame
  • Straight grate 35 mm between ribs
  • Non-detachable grate-frame connection

Frame

  • Cast iron frame with trap mounting
  • Frame height 100 mm
  • PUR damping insert on frame resistant to oil and defrosting agents

Other

  • Mortar connection with a strength of at least 45 MPa at least 20 mm high is required between the frame and the top part of the inlet

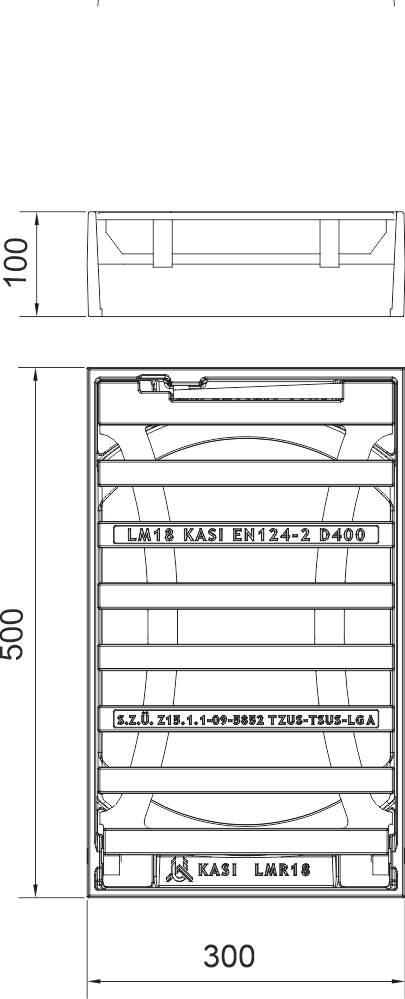

Grate KM18P Grate KM18P
Max. opening angle

Max. opening angle

Theft protection

Theft protection

Damping insert

Damping insert
