Manhole cover without ventilation in cast iron frame with foot

E600 - areas exposed to high loads from heavy machinery

Code	KEY7S
Material	Cast iron
Weight	82 kg
Norm	EN124-2
Package	10 ks/pal
Load class	Light traffic load

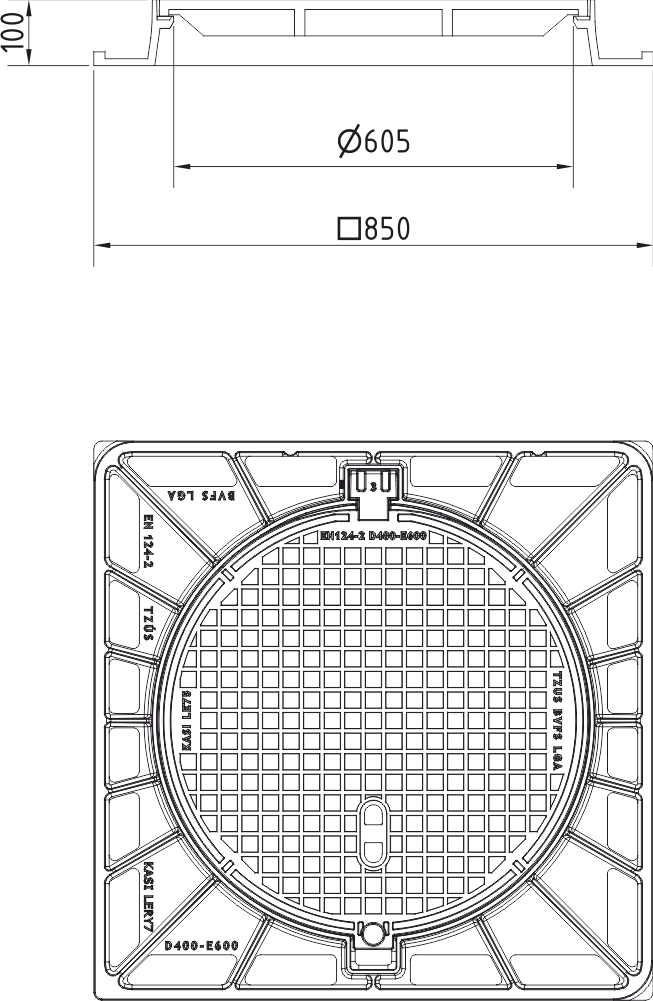

Cover EUROPA 7 with hinge, cast iron lid without ventilation with open hinge, spring-loaded lid locking in the frame, E600, cast iron square foot frame, height 100mm, without a trap, horizontal PUR damping insert on the frame, with shell

Cover

Cast iron non-vented with quiet design
Machined lid seating surface to 0.3mm
Hinge with possibility of removal from the frame
Safety lock at 90?
Custom theme/logo option

Frame

Cast iron frame with foot without shoulder for trap
Frame height 100 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Suitable for places with light traffic load
added lid opening - pocket for crowbar
Lid safety lock at 90?
