Manhole cover with ventilation in a cast iron frame with foot

E600 - areas exposed to high loads from heavy machinery

Code	KEY7R
Material	Cast iron
Weight	82 kg
Norm	EN124-2
Package	10 ks/pal
Load class	Light traffic load

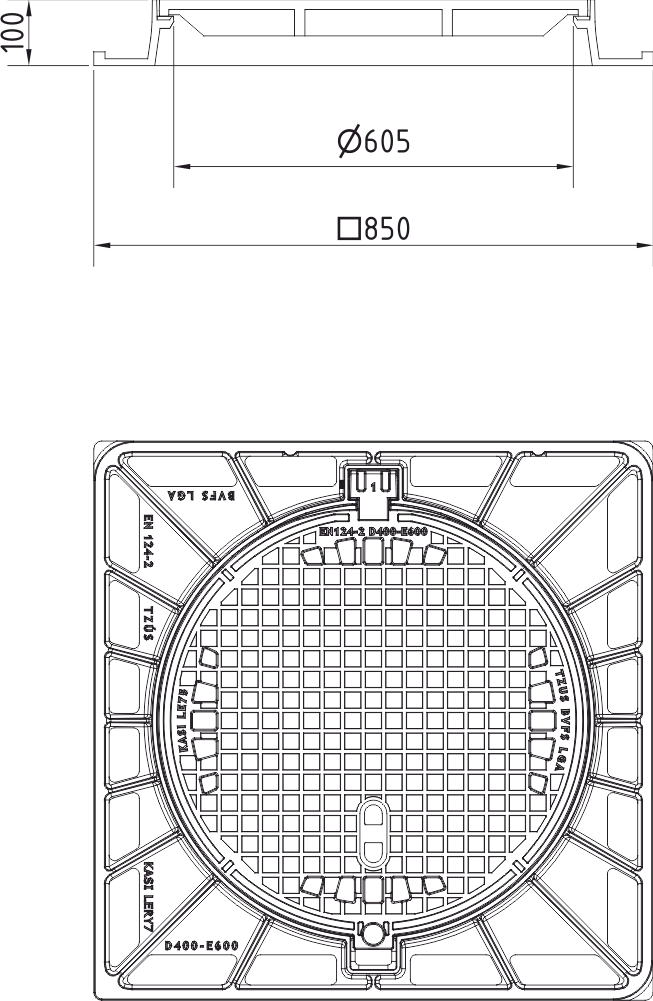

Cover EUROPA 7 with hinge, cast iron lid with ventilation with closed hinge, spring-loaded lid lock, E600, cast iron square foot frame, height 100mm, without a trap, horizontal PUR damping insert on the frame, with shell

Cover

Cast iron with ventilation with quiet design
Machined lid seating surface to 0.3mm
Hinge secured against removal from the frame
Safety lock at 90?
Lid weight 47kg

Frame

Cast iron frame with foot without shoulder for trap
Frame height 100 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Suitable for places with light traffic load
added lid opening - pocket for crowbar
Lid safety lock at 90?
