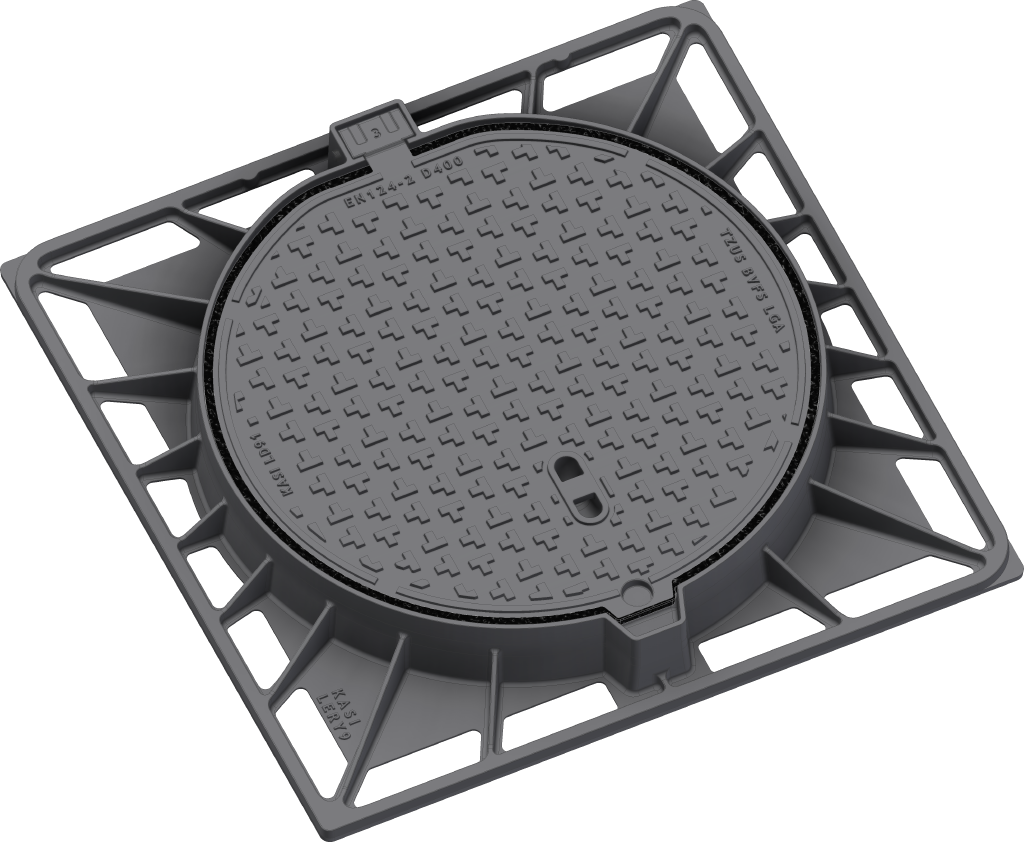

Manhole cover without ventilation in a square cast iron frame

D400 - heavy traffic load

Code	KDY9K
Material	Cast iron
Weight	75 kg
Norm	EN124-2
Package	10 ks/pal
Load class	Heavy traffic load

Cover EUROPA 9 with hinge, cast iron lid without ventilation with open hinge with shell, spring-loaded lid locking in the frame, D400, cast iron frame, square, h. 100mm, without mounting for trap, horizontal and vertical PUR damping insert on the lid

Cover

Cast iron without ventilation with anti-slip design
Integrated KASI-PUR damping insert with high resistance
Hinge with possibility of removal from the frame
Safety lock at 90?
Custom theme/logo option

Frame

Cast iron frame with foot without shoulder for trap
Frame height 100 mm
Machined frame contact surface to 0.1mm
Use with BAR-V and BAR adjustment rings

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Suitable for places with high traffic load
added lid opening - pocket for crowbar
Lid safety lock at 90?
