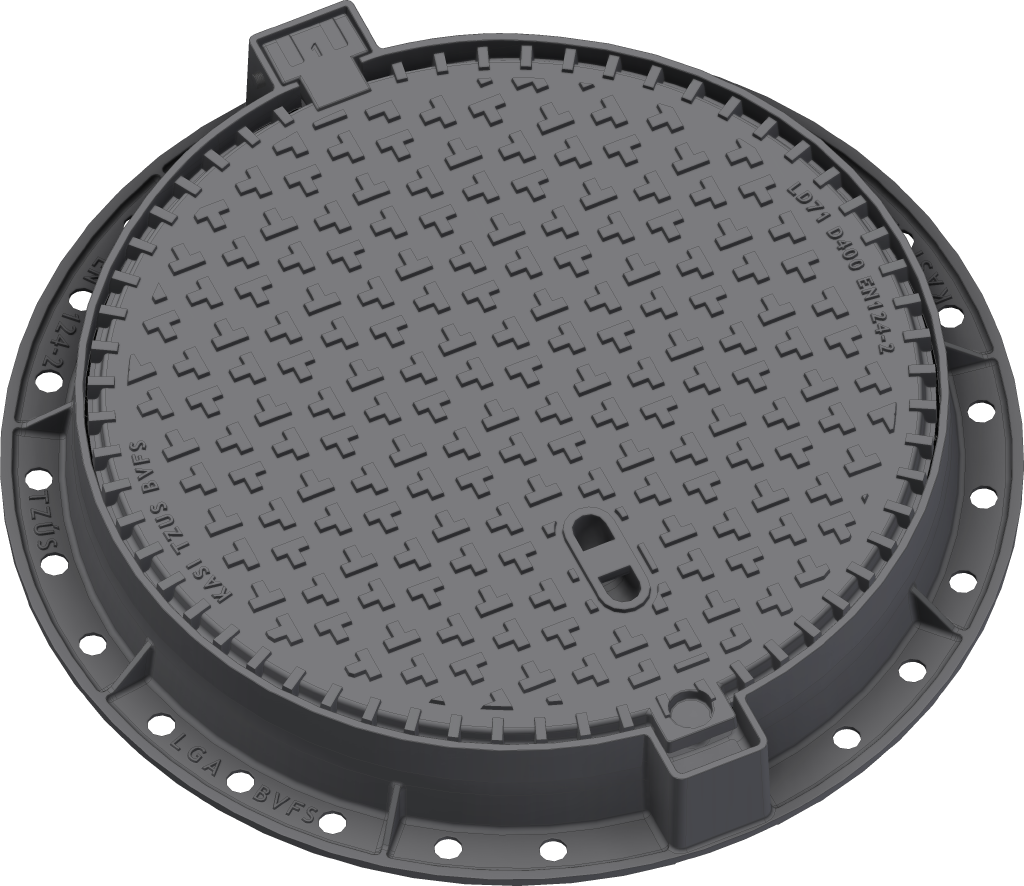

Manhole cover without ventilation in cast iron frame with foot

D400 - light traffic load

Code	KDL7I
Material	Cast iron
Weight	50 kg
Norm	EN124-2
Package	20 ks/pal
Load class	Light traffic load

EUROPA 7 cover with hinge, cast iron lid without ventilation with closed hinge, spring-loaded lid lock in the frame, D400, cast iron foot frame h. 100mm without mounting for trap, horizontal and vertical PUR damping insert on the frame, with shell

Cover

Cast iron without ventilation with anti-slip design
Machined lid seating surface to 0.3mm
Hinge secured against removal from the frame
Safety lock at 90?
Custom theme/logo option

Frame

Cast iron frame with foot without shoulder for trap
Frame height 100 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Suitable for places with light traffic load
added lid opening - pocket for crowbar
Lid safety lock at 90?
