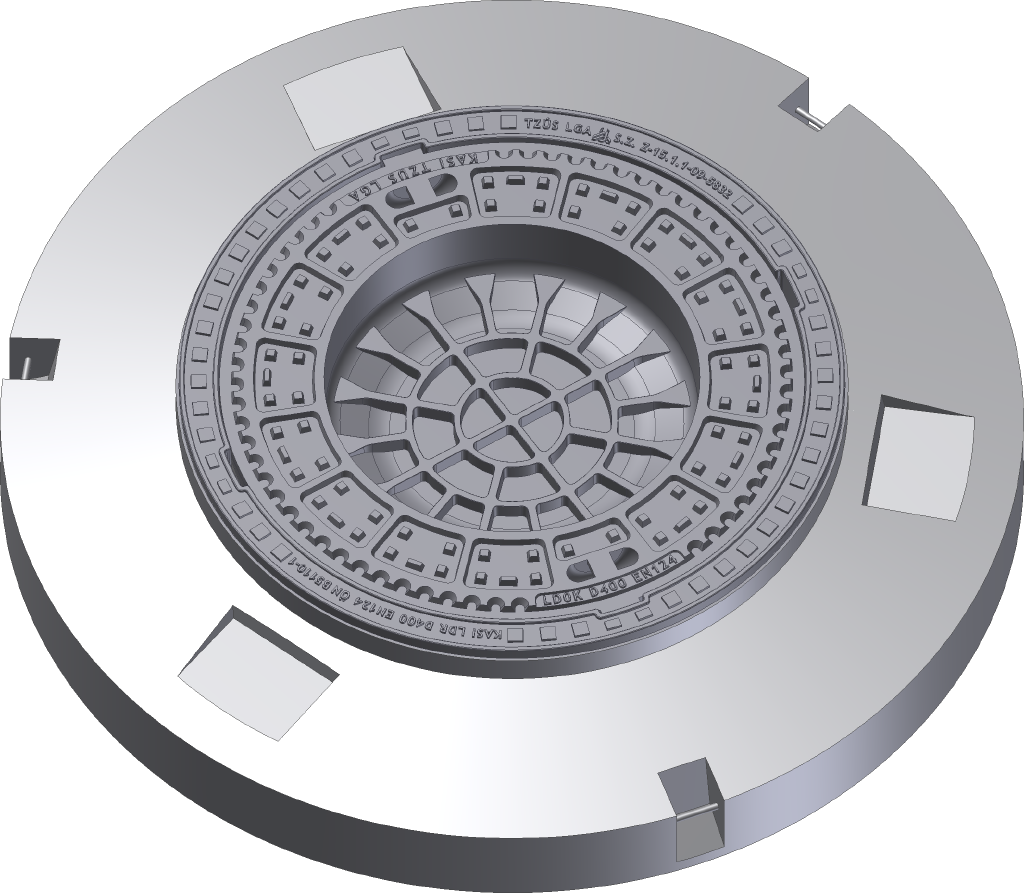

Manhole cover without ventilation in the distribution frame
D400 - heavy traffic load
| Code | KDG0K |
| Material | Concrete, Cast iron |
| Weight | 328 kg |
| Norm | EN124-2 |
| Package | 5 ks/pal |
| Load class | Heavy traffic load |
cover without hinge, horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- Cast iron without venting with anti-slip design.
- Custom theme/logo option
- Lid weight 63kg

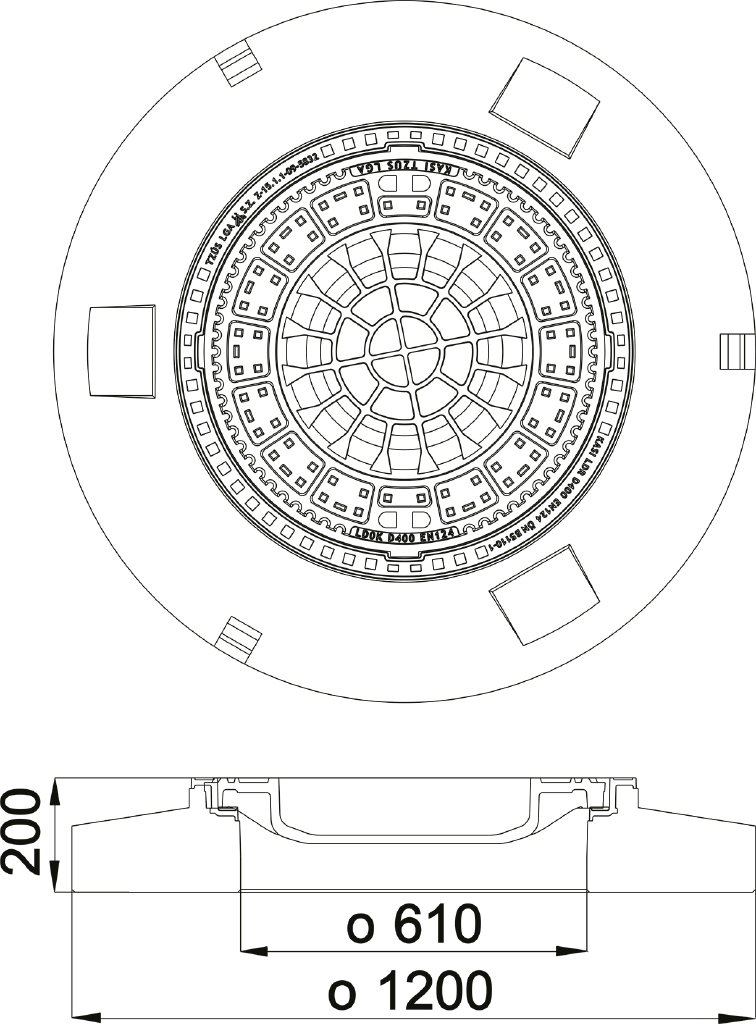

Frame
- Distribution frame 1200mm without mounting for catcher
- Frame height 200 mm
- Suitable for replacing covers in places with slightly damaged cones.
- Three handling hinges
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Suitable for places with high traffic load
- custom lid motif possible
Customer solutions
Damping insert
