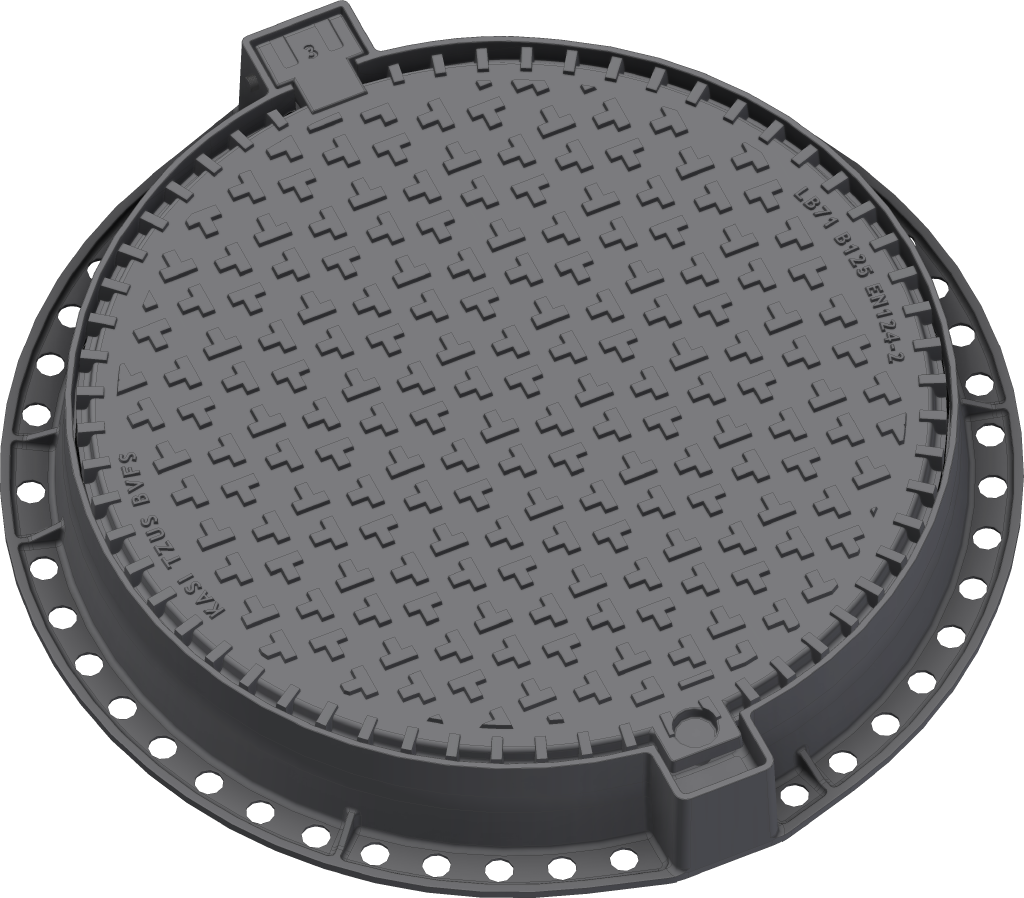

Manhole cover without ventilation in cast iron frame with foot
B125 - parking areas for passenger vehicles
| Code | KBLL73 |
| Material | Cast iron |
| Weight | 44 kg |
| Norm | EN124-2 |
| Package | 20 ks/pal |
cover with hinge, horizontal PUR shock-absorbing lining, spring-loaded lid locking in frame
Cover
- Machined lid seating surface to 0.3mm
- Cast iron without venting with anti-slip design.
- Hinge with possibility of removal from the frame
- Safety lock at 90?
- Custom theme/logo option
Frame
- Cast iron frame with foot without shoulder for trap
- Frame height 100 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Option of screw locking
- Lid safety lock at 90?
- custom lid motif possible
Customer solutions
Damping insert
Max. opening angle
