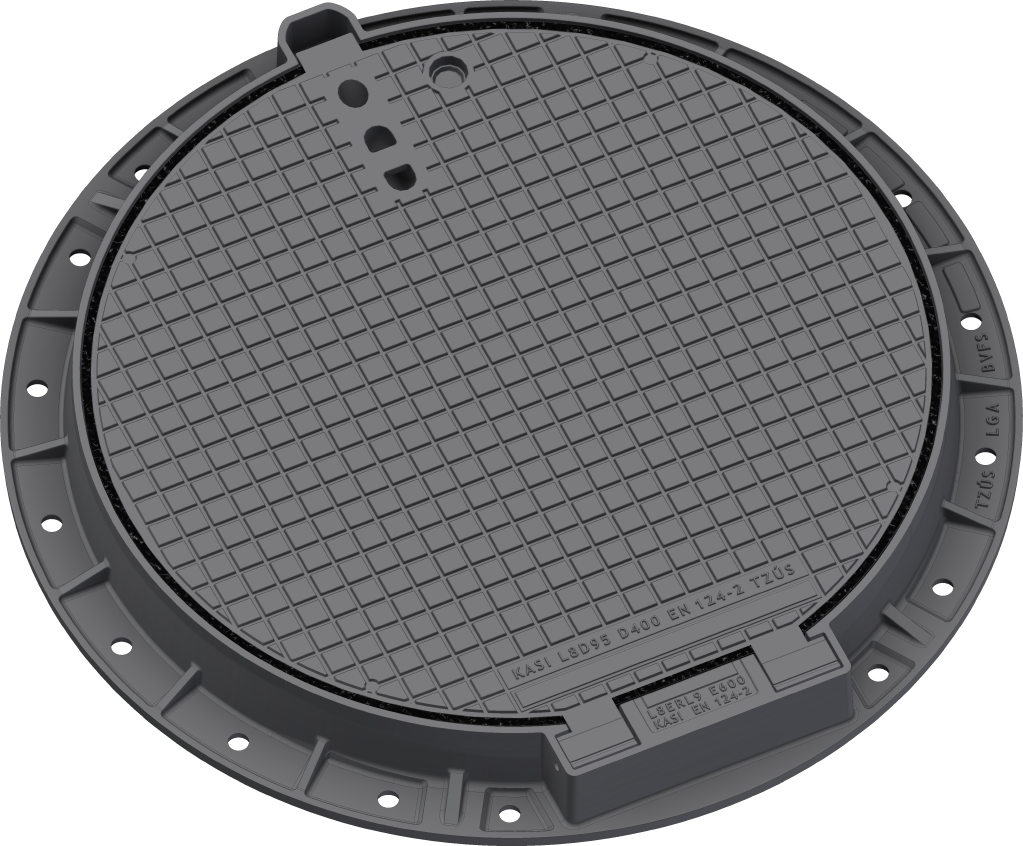

Manhole cover without ventilation in cast iron frame with foot
D400 - heavy traffic load
| Code | K8DL97C |
| Material | Cast iron |
| Weight | 143 kg |
| Norm | DIN1229, EN124-2 |
| Package | 8 ks/pal |
| Load class | D400 |
| Traffic load | Heavy traffic load |
Sewer cover Europa 9 DN800, noiseless design, cast iron frame h.100mm, without recess for trap, D 400, without plug, without ventilation, colour
Cover
- Integrated KASI-PUR damping insert with high resistance
- Cast iron without venting with a quiet design.
- Double hinge with possibility of removal from the frame
- Custom theme/logo option
- Safety lock at 90?
Frame
- Cast iron frame with foot without shoulder for trap
- Frame height 100 mm
- Machined frame contact surface to 0.1mm
- Use with DN800 BAR8 adjustment rings
Other
- The cover is supplied with a black finish
- Option of screw locking
- Suitable for places with high traffic load
- Lid safety lock at 90?
- custom lid motif possible
Customer solutions
Damping insert
Max. opening angle
Quiet design
