KMC03P
D400 - heavy traffic load
| Code | KMC03P |
| Material | Concrete, Cast iron |
| Weight | 28 kg |
| Norm | EN124-2 |
| Package | 32 ks/pal |

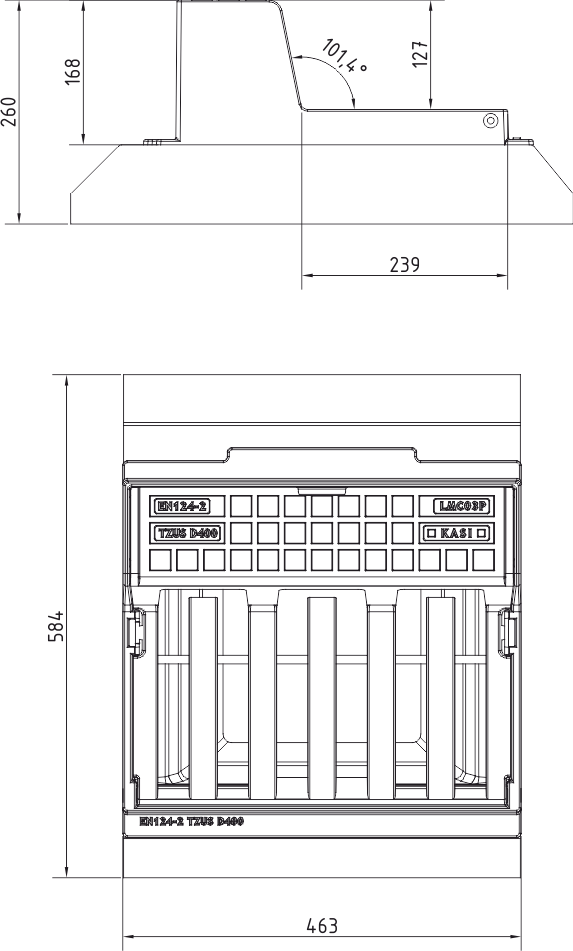

Obrubníková vpusť 453x463mm pro uliční vpusti třída zatížení D400, s kombinovaným vtokem
Cover
- Hinge secured with a pin against removal from the frame
- Non-detachable connection of the grille to the frame
Frame
- frame height 160 mm
- PUR damping insert on the frame resistant to oils and de-icing agents
Other
- Place on the 10A alignment ring.
Max. opening angle
Anti-theft protection
rainwater drainage
