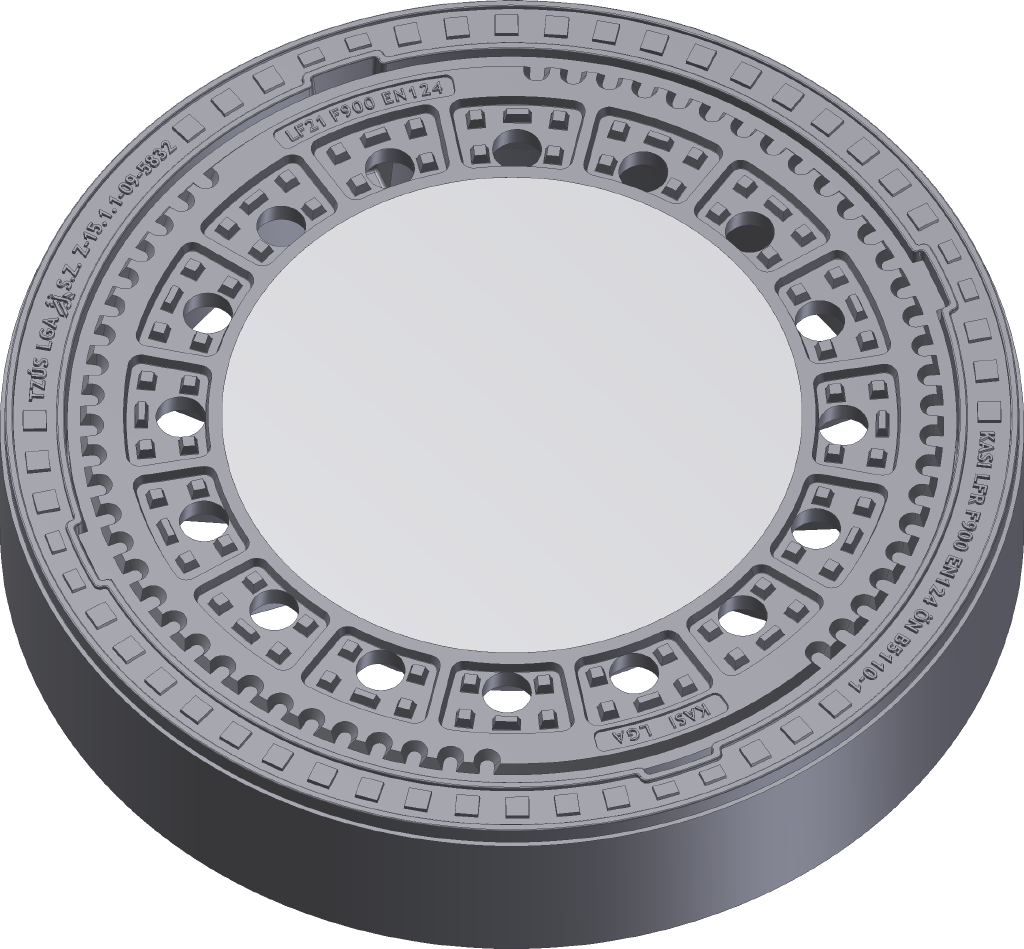

Manhole cover with ventilation in a cast-iron concrete frame
F900 - extremely loaded areas
| Code | KFTE21 |
| Material | Concrete, Cast iron |
| Weight | 170 kg |
| Norm | DIN19584-2, DIN1229, EN124-2 |
| Package | 8 ks/pal |
| Load class | Extreme traffic load |
cover without hinge, horizontal PUR shock-absorbing lining on frame, EPDM shock-absorbing lining on cover, without spring-loaded lid locking in frame
Cover
- With concrete filling with ventilation - uninteresting for thieves
- Lid weight 91kg
- EPDM damping insert - resistant to oils
Frame
- Frame height 160 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- Suitable for places with extreme traffic load
- chemical resistance of concrete XF4
Damping insert
Concrete-cast iron lid
Hatch without hinge
