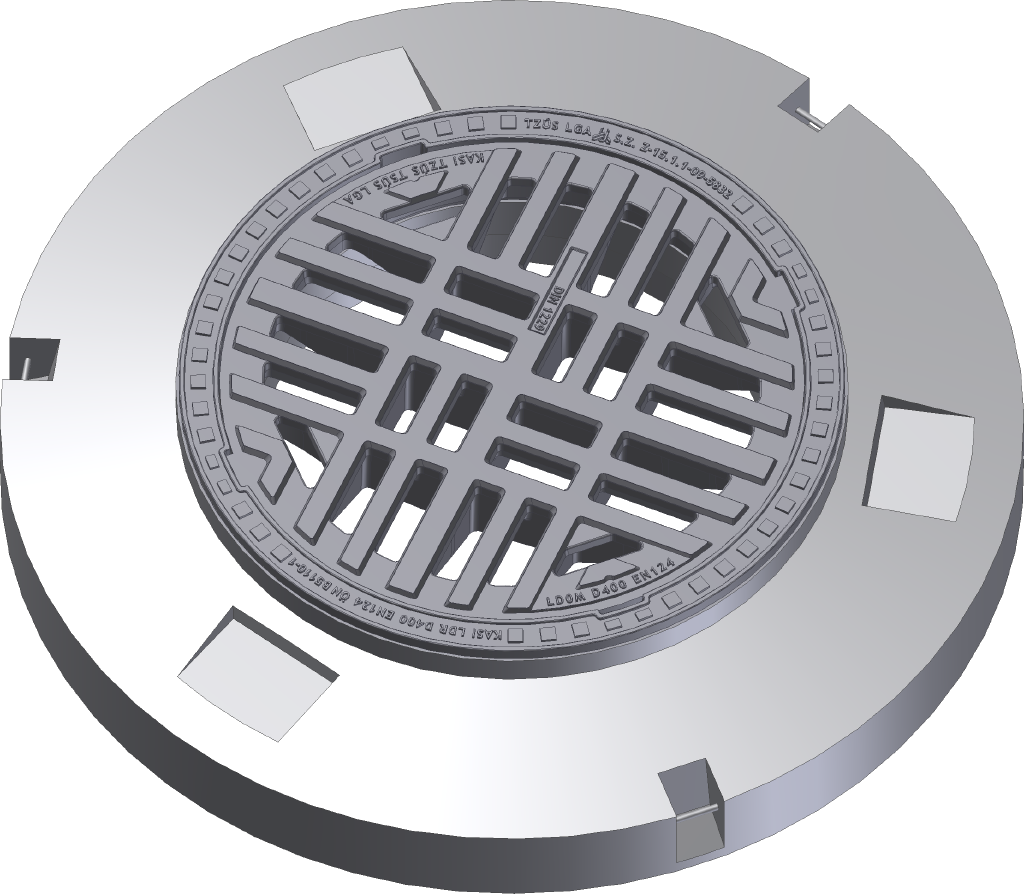

Inlet grille in the distribution frame
F900 - extremely loaded areas
| Code | KFGA0M |
| Material | Concrete, Cast iron |
| Weight | 358 kg |
| Norm | EN124-2 |
| Package | 5 ks/pal |
| Load class | F900 |
cover without hinge, horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- Lid weight 82kg
Frame
- Distribution frame 1200mm without mounting for catcher
- Frame height 200 mm
- Suitable for replacing covers in places with slightly damaged cones.
- Three handling hinges
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Suitable for places with extreme traffic load
Damping insert
Hatch without hinge
rainwater drainage
