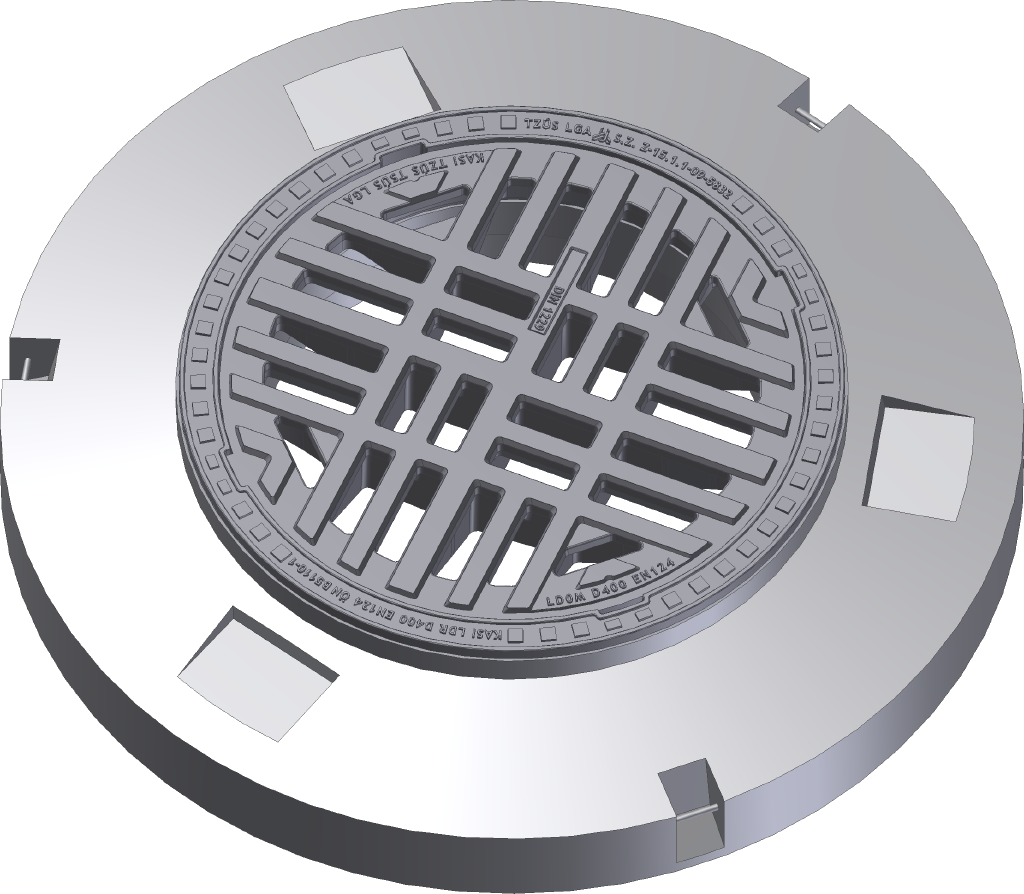

Inlet grille in the distribution frame
F900 - extremely loaded areas
| Code | KFG0M |
| Material | Concrete, Cast iron |
| Weight | 369 kg |
| Norm | DIN1229, EN124-2 |
| Package | 5 ks/pal |
| Load class | Extreme traffic load |
cover without hinge, horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- Lid weight 93kg
Frame
- Distribution frame 1200mm without mounting for catcher
- Frame height 200 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
- Three handling hinges
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Suitable for places with extreme traffic load
Damping insert
rainwater drainage
