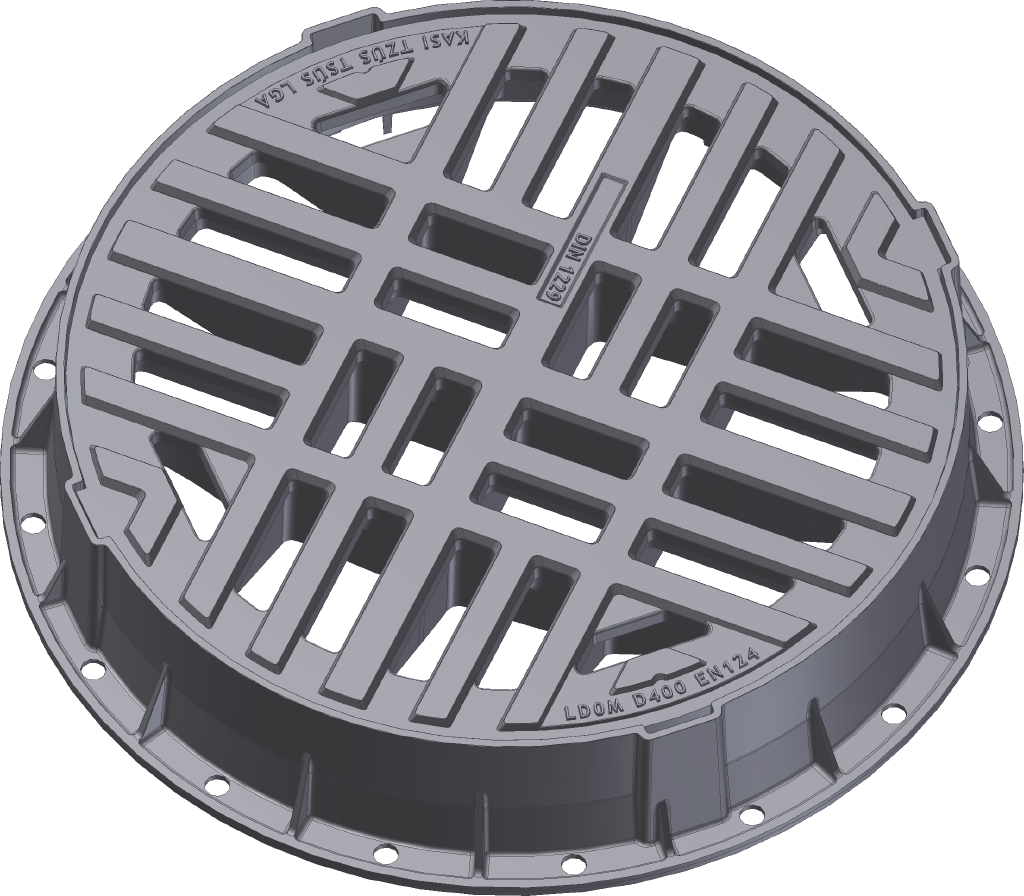

Inlet grille in cast iron frame with foot
E600 - areas exposed to high loads from heavy machinery
| Code | KEP2AM |
| Material | Cast iron |
| Weight | 117 kg |
| Norm | DIN1229, EN124-2 |
| Package | 10 ks/pal |
| Load class | Heavy traffic load |
cover without hinge, horizontal PUR shock-absorbing lining on frame, EPDM shock-absorbing lining on cover, without spring-loaded lid locking in frame
Cover
- Lid weight 91kg
- EPDM damping insert - resistant to oils
Frame
- Frame height 140 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Suitable for places with high traffic load
Damping insert
Hatch without hinge
rainwater drainage
