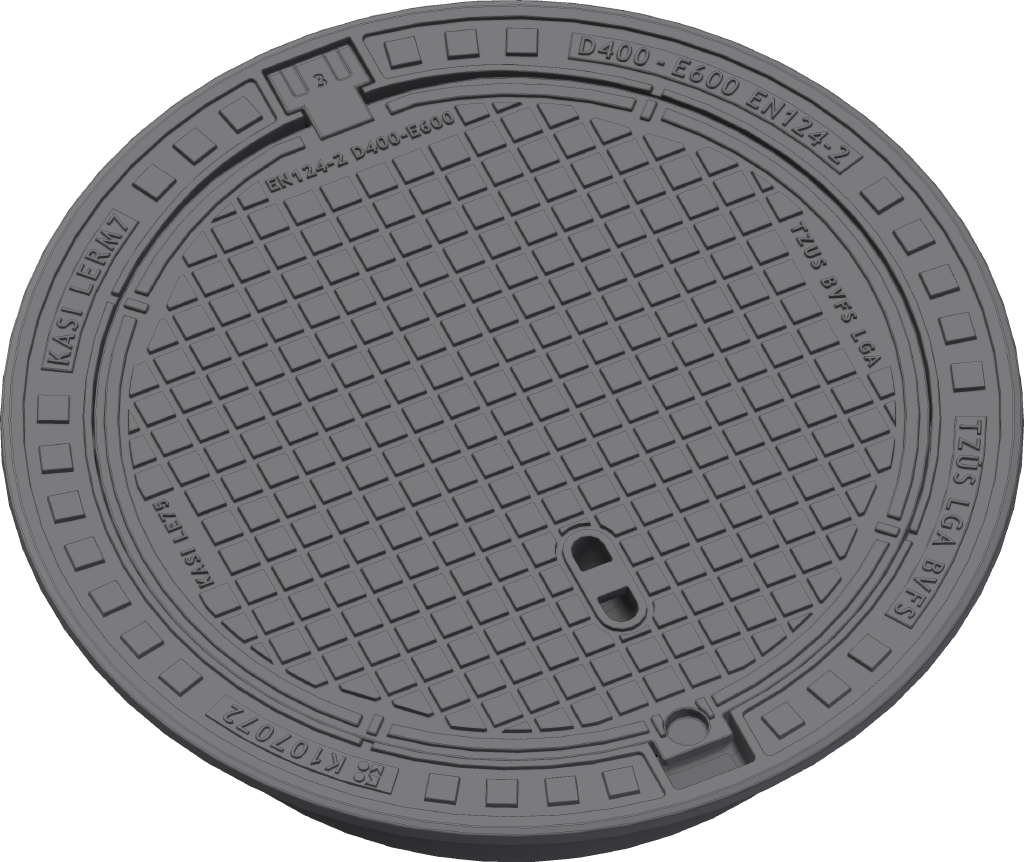

Manhole cover without ventilation in self-leveling frame

E600 - areas exposed to high loads from heavy machinery

Code	KEN7S
Material	Cast iron
Weight	77 kg
Norm	EN124-2
Package	16 ks/pal
Load class	Heavy traffic load

Poklop EUROPA 7 s pantem, víko litina bez ventilace s otevřeným pantem tichý design, pružinové zajištění víka v rámu, E600, rám litina samonivelační s osazením pro lapač, v.160mm, horizontální PUR tlumící vložka na rámu, s mušlí

Cover

Cast iron non-vented with quiet design
Machined lid seating surface to 0.3mm
Hinge with possibility of removal from the frame
Safety lock at 90?
Custom theme/logo option

Frame

Self-leveling frame without mounting for trap
Frame height 160 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance
Installation without guide ring - the frame can be inserted directly into the shaft

Other

The cover is supplied without surface treatment - painted variants can be ordered
only with UL7 three-arm trap
Option of screw locking
Suitable for places with high traffic load
added lid opening - pocket for crowbar
