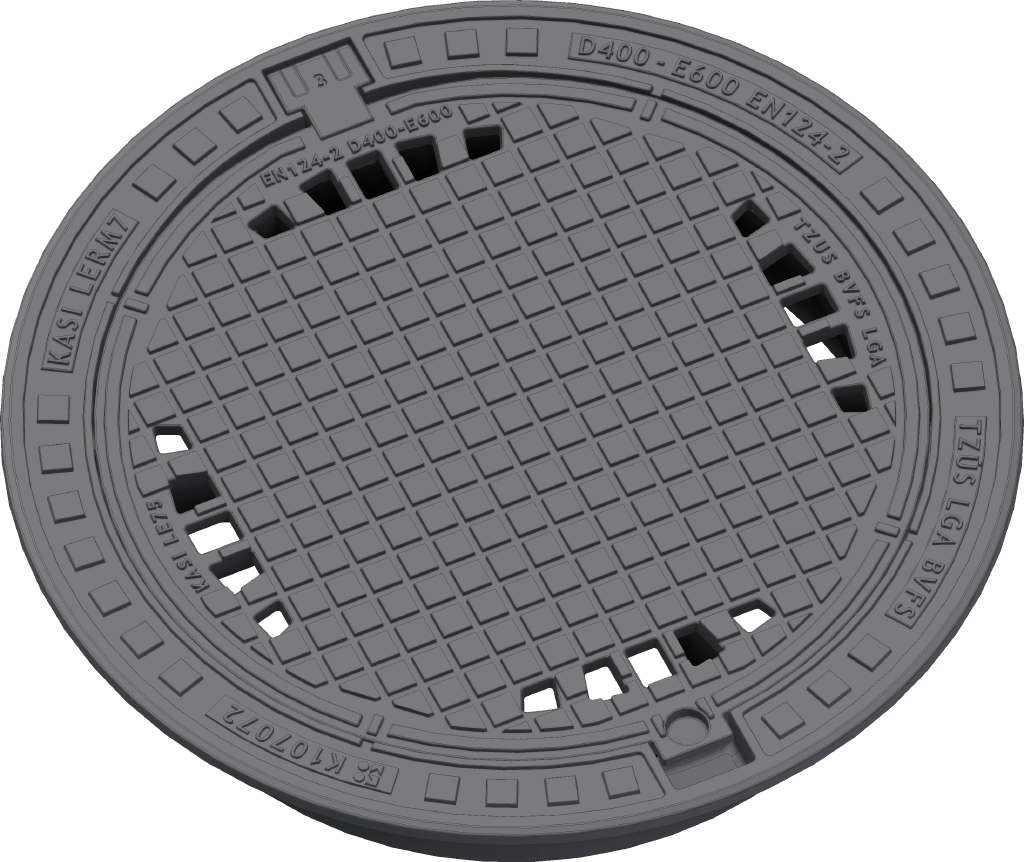

Manhole cover with ventilation in a self-leveling frame

E600 - areas exposed to high loads from heavy machinery

Code	KEN78
Material	Cast iron
Weight	77 kg
Norm	EN124-2
Package	14 ks/pal
Load class	Heavy traffic load

Poklop EUROPA 7 s pantem, víko litina s ventilací s otevřeným pantem tichý design, pružinové zajištění víka v rámu, E600, rám litina samonivelační v.160mm s osazením pro lapač, horizontální PUR tlumící vložka na rámu

Cover

Integrated KASI-PUR damping insert with high resistance
Machined lid seating surface to 0.3mm
Hinge with possibility of removal from the frame
Safety lock at 90?
Cast iron with ventilation and quiet design.

Frame

Self-leveling frame without mounting for trap
Frame height 160 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance
Installation without guide ring - the frame can be inserted directly into the shaft

Other

The cover is supplied without surface treatment - painted variants can be ordered
only with UL7 three-arm trap
Option of screw locking
Suitable for places with high traffic load
Lid safety lock at 90?
