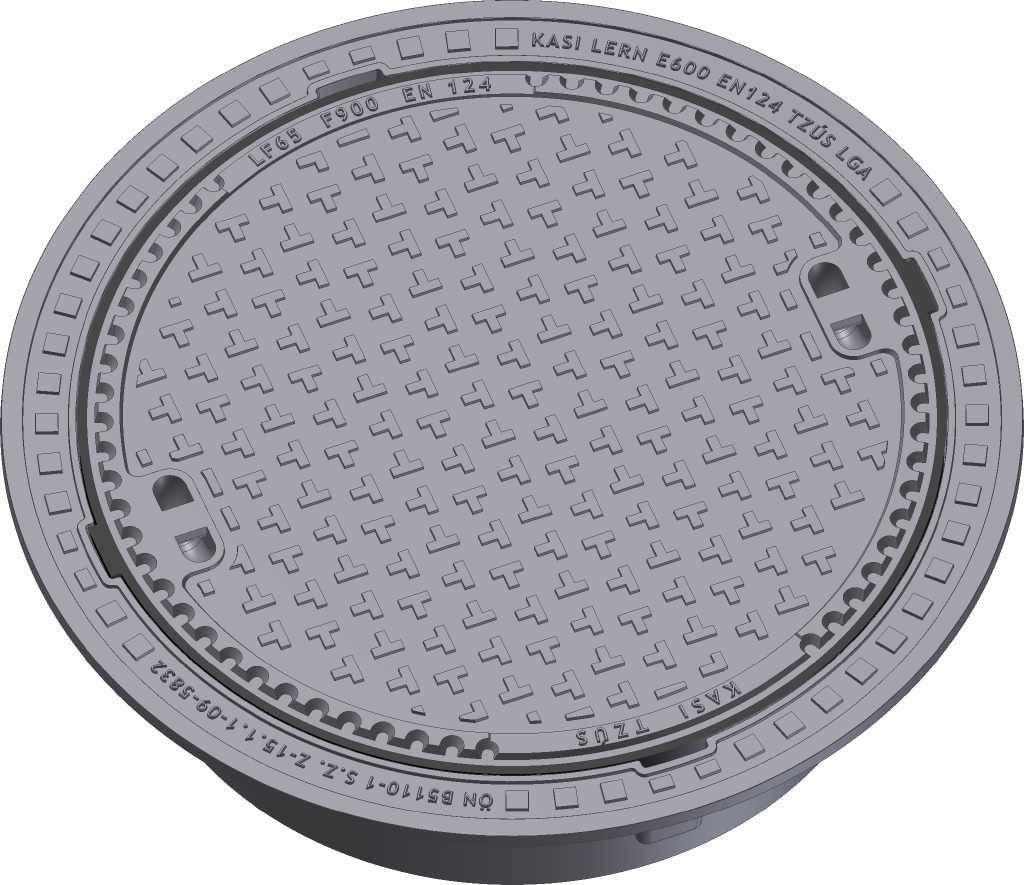

Manhole cover without ventilation in self-leveling frame
E600 - areas exposed to high loads from heavy machinery
| Code | KEN65 |
| Material | Cast iron |
| Weight | 119 kg |
| Norm | EN124-2 |
| Package | 10 ks/pal |
| Load class | Heavy traffic load |
cover without hinge, horizontal PUR shock-absorbing lining on frame, horizontal and vertical PUR shock-absorbing lining on lid , without spring-loaded lid locking in frame
Cover
- Integrated KASI-PUR damping insert with high resistance
- Cast iron without venting with anti-slip design.
- Custom theme/logo option
- Lid weight 85kg
Frame
- Self-leveling frame with mounting for trap
- Frame height 160 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
- Installation without guide ring - the frame can be inserted directly into the shaft
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Suitable for places with high traffic load
- custom lid motif possible
Customer solutions
Damping insert
