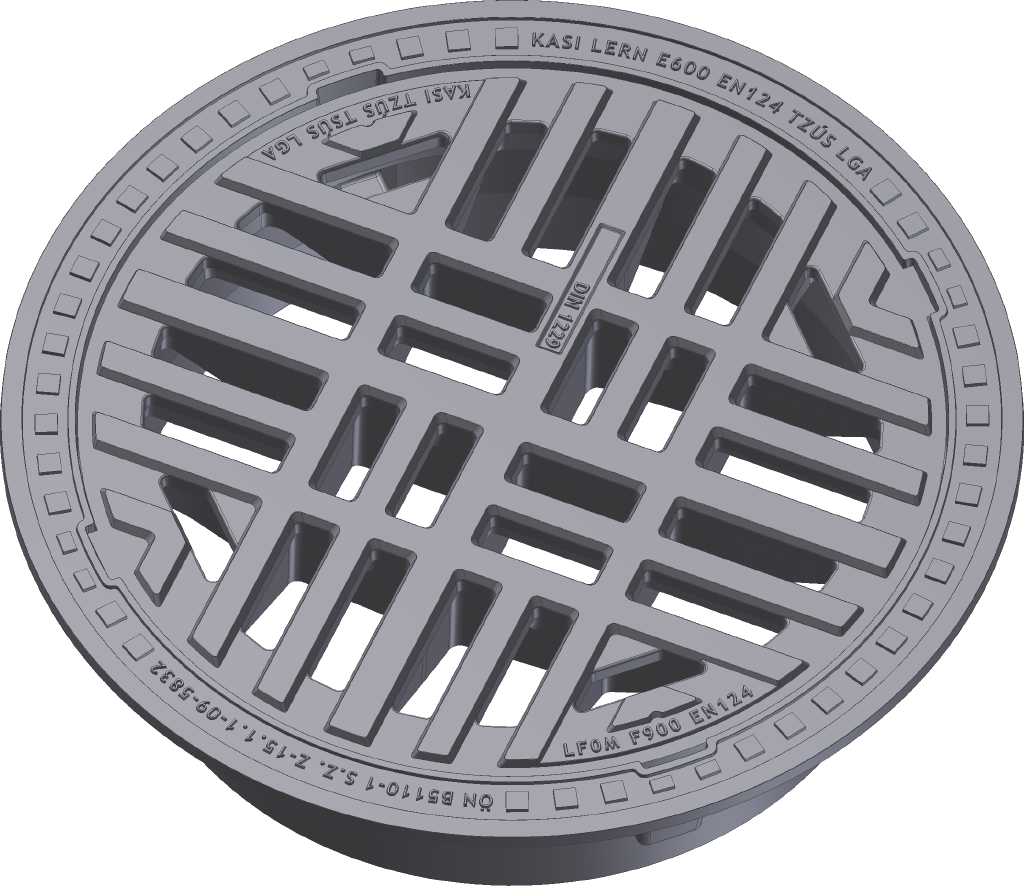

Inlet grille in self-leveling frame
E600 - areas exposed to high loads from heavy machinery
| Code | KEN0M |
| Material | Cast iron |
| Weight | 127 kg |
| Norm | DIN1229, EN124-2 |
| Package | 10 ks/pal |
| Load class | Heavy traffic load |
cover without hinge, horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- Lid weight 93kg
Frame
- Self-leveling frame with mounting for trap
- Frame height 160 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
- Installation without guide ring - the frame can be inserted directly into the shaft
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Suitable for places with high traffic load
Damping insert
rainwater drainage
