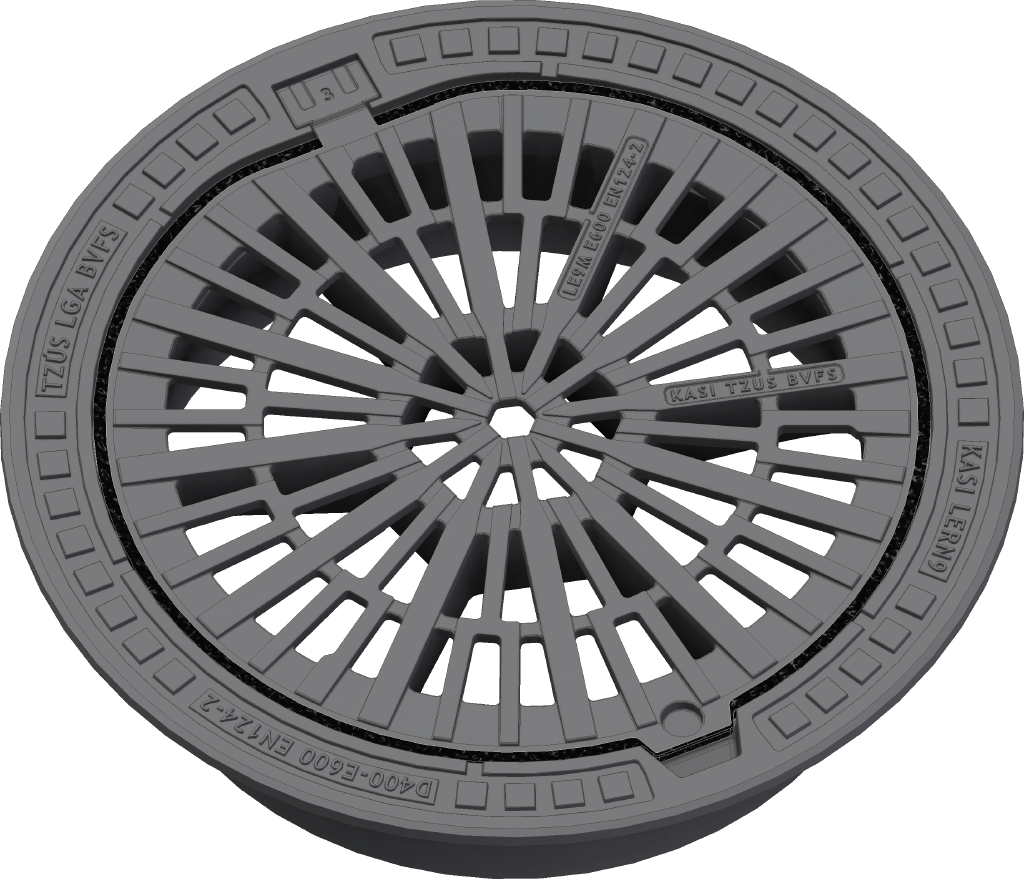

Inlet grille in self-leveling frame

E600 - areas exposed to high loads from heavy machinery

Code	KEMN9N
Material	Cast iron
Weight	84 kg
Norm	EN124-2
Package	14 ks/pal
Load class	Extreme traffic load

Poklop EUROPA 9 s pantem, víko litina kruhová vtoková mříž s otevřeným pantem, pružinové zajištění víka v rámu, E600, rám litina samonivelační těžký v.200mm bez osazení pro lapač, horizontální a vertikální PUR tlumící vložka na víku

Cover

Integrated KASI-PUR damping insert with high resistance
Hinge with possibility of removal from the frame
Safety lock at 90?
Lid weight 45kg
Securing the lid in the frame with multi-point springs

Frame

Self-leveling frame without mounting for trap
Frame height 200 mm
Machined frame contact surface to 0.1mm
Use with BAR-V and BAR adjustment rings
Installation without guide ring - the frame can be inserted directly into the shaft

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Suitable for places with extreme traffic load
Lid safety lock at 90?
