Manhole cover without ventilation in the distribution frame

E600 - areas exposed to high loads from heavy machinery

Code	KEI7S
Material	Concrete, Cast iron
Weight	191 kg
Norm	EN124-2
Package	6 ks/pal
Load class	Heavy traffic load

Poklop EUROPA 7 s pantem, víko litina bez ventilace s otevřeným pantem tichý design s mušlí, pružinové zajištění víka v rámu, E600, rám beton-litina roznášecí DN1000 v.180mm bez osazení pro lapač, horizontální PUR tlumící vložka na rámu

Cover

Cast iron non-vented with quiet design
Machined lid seating surface to 0.3mm
Hinge with possibility of removal from the frame
Safety lock at 90?
Custom theme/logo option

Frame

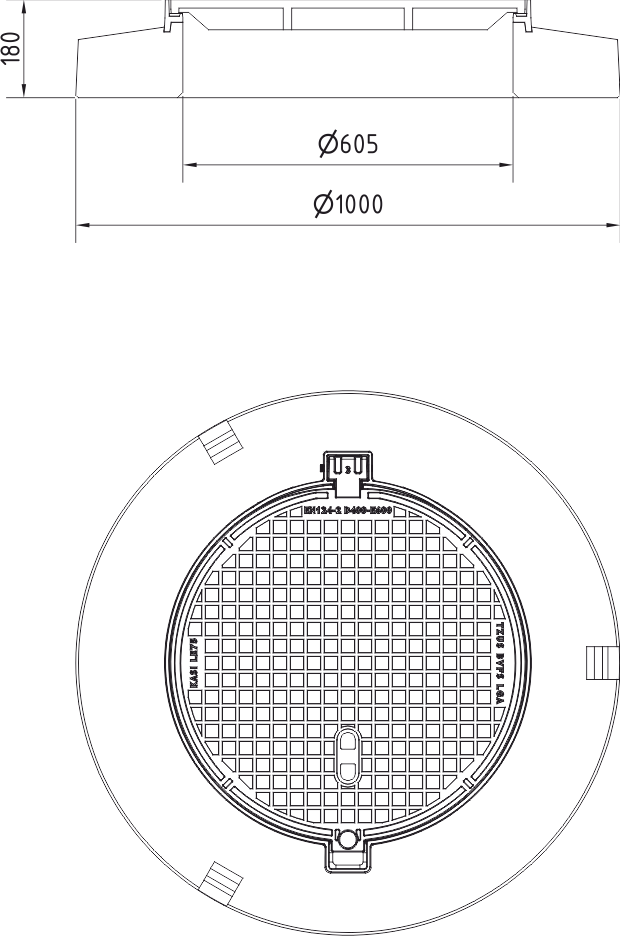

Distribution frame 1000mm without mounting for trap
Frame height 180 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance
Three handling hinges

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Suitable for places with high traffic load
added lid opening - pocket for crowbar
Lid safety lock at 90?
