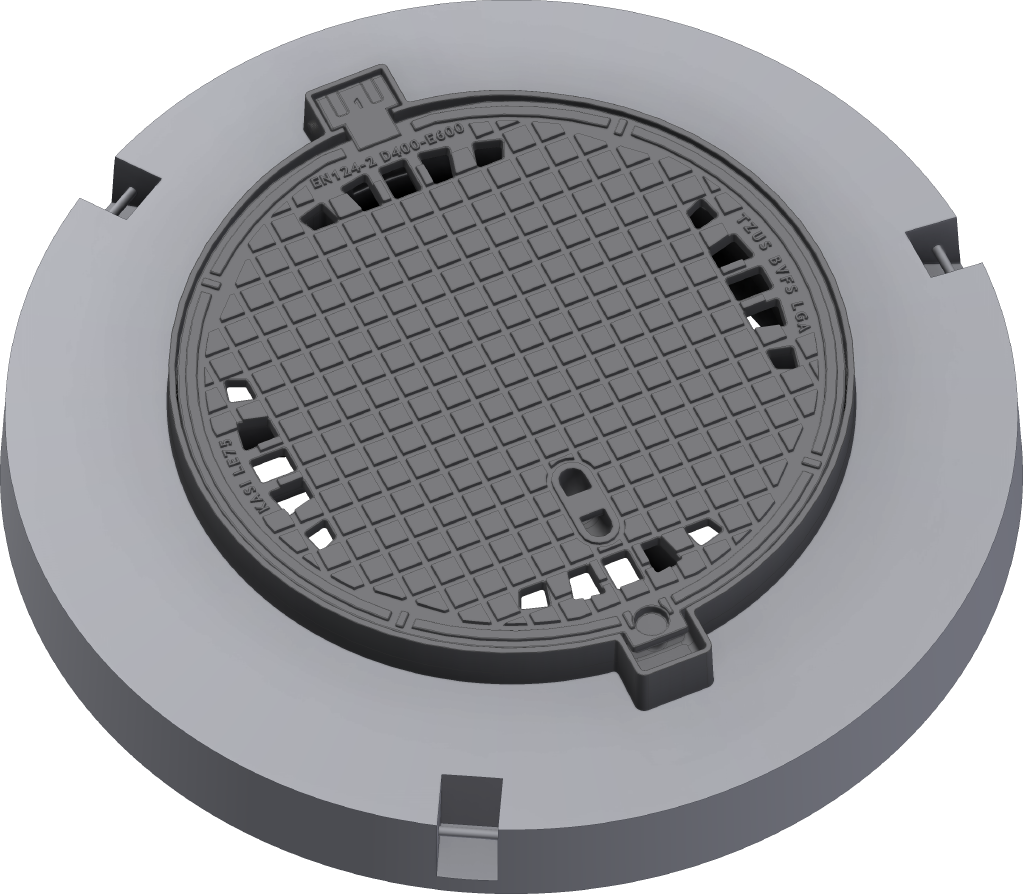

Manhole cover with ventilation in the distribution frame

E600 - areas exposed to high loads from heavy machinery

Code	KEI7R
Material	Concrete, Cast iron
Weight	191 kg
Norm	EN124-2
Package	6 ks/pal
Load class	Heavy traffic load

Poklop EUROPA 7 s pantem, víko litina s ventilací s uzavřeným pantem tichý design s mušlí, pružinové zajištění víka v rámu, E600, rám beton-litina roznášecí DN1000 v.180mm bez osazení pro lapač, horizontální PUR tlumící vložka na rámu

Cover

Cast iron with ventilation with quiet design
Machined lid seating surface to 0.3mm
Hinge secured against removal from the frame
Safety lock at 90?
Lid weight 47kg

Frame

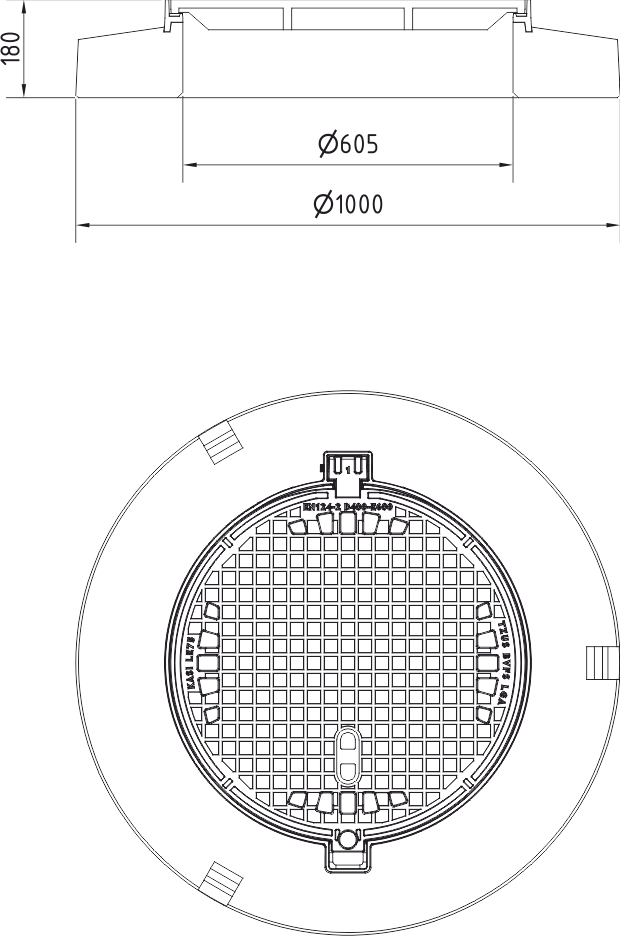

Distribution frame 1000mm without mounting for trap
Frame height 180 mm
Suitable for replacing covers in places with slightly damaged cones.
Three handling hinges
Integrated PUR damping insert with high resistance

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Suitable for places with high traffic load
added lid opening - pocket for crowbar
Lid safety lock at 90?
