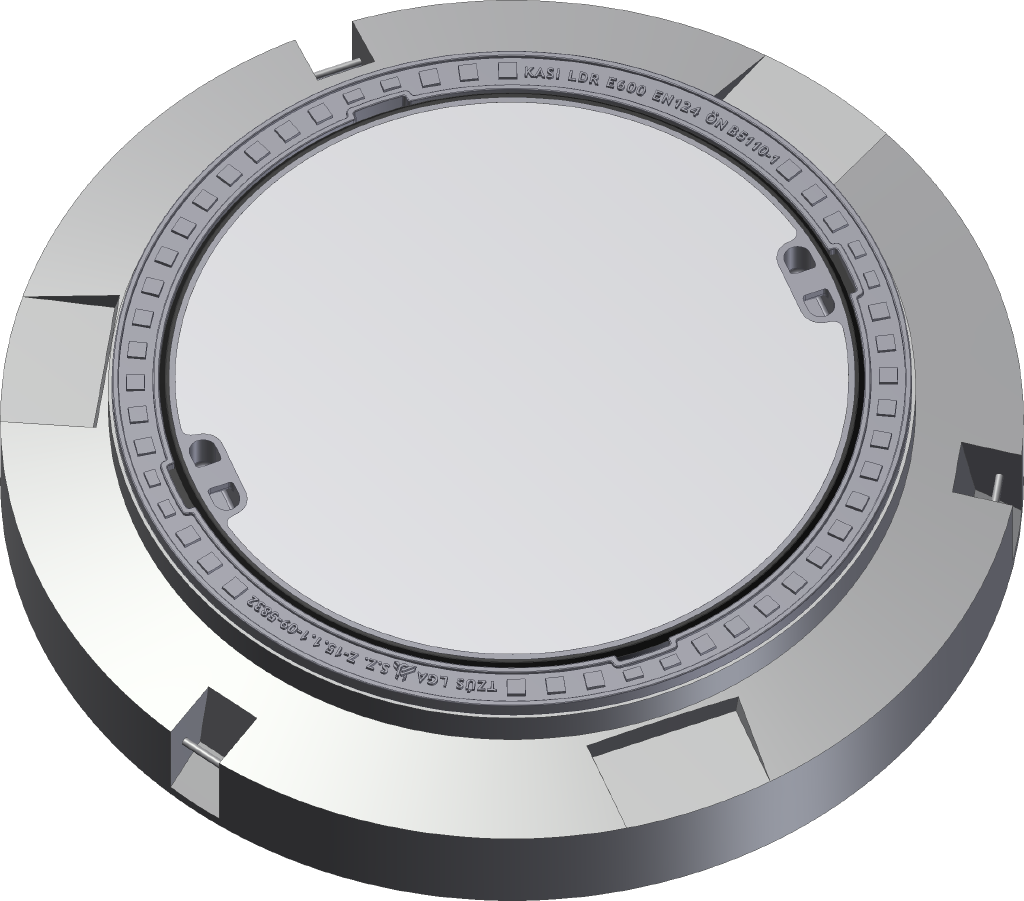

Manhole cover without ventilation in the distribution frame
F900 - extremely loaded areas
| Code | KEI62 |
| Material | Concrete, Cast iron |
| Weight | 246 kg |
| Norm | DIN1229, EN124-2 |
| Package | 6 ks/pal |
| Load class | Extreme traffic load |
cover without hinge, horizontal PUR shock-absorbing lining on frame, horizontal and vertical PUR shock-absorbing lining on lid , without spring-loaded lid locking in frame
Cover
- Integrated KASI-PUR damping insert with high resistance
- With concrete filling without ventilation - uninteresting for thieves
- Lid weight 91kg
Frame
- Distribution frame 1000mm without mounting for trap
- Frame height 180 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
- Three handling hinges
Other
- Suitable for places with extreme traffic load
- chemical resistance of concrete XF4
Damping insert
Concrete-cast iron lid
Hatch without hinge
