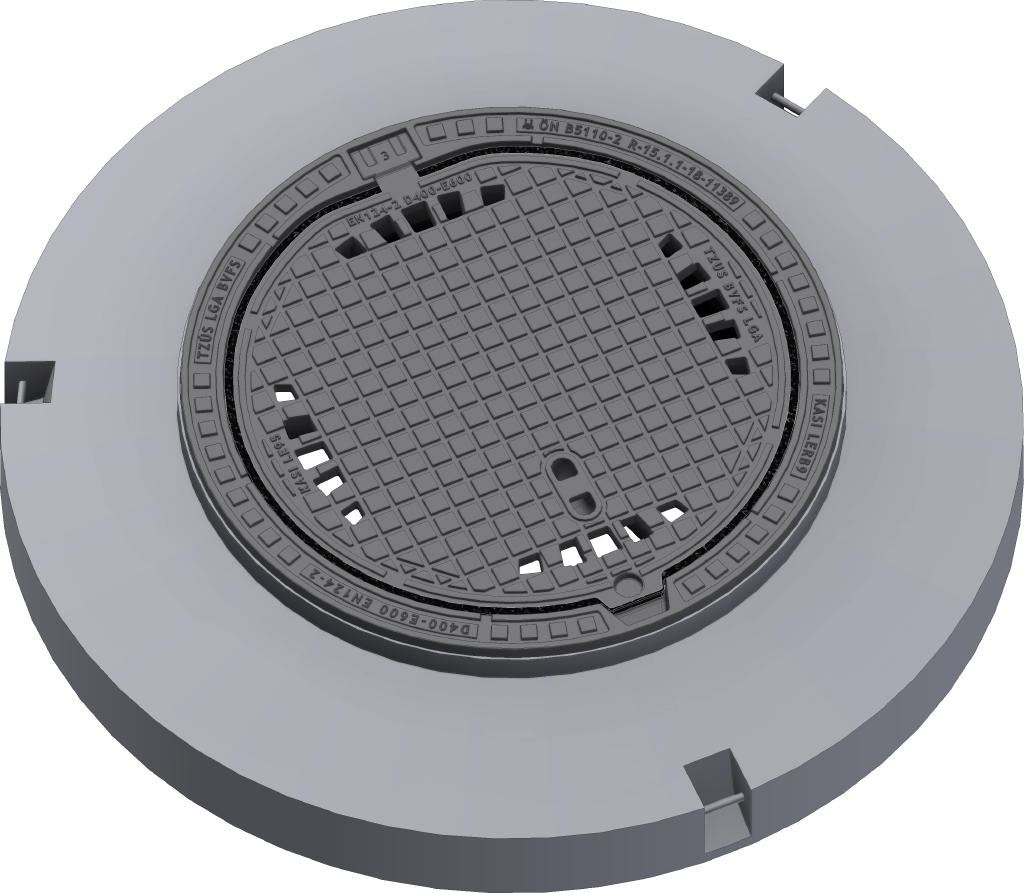

Manhole cover with ventilation in the distribution frame

E600 - areas exposed to high loads from heavy machinery

Code	KEG9T
Material	Concrete, Cast iron
Weight	338 kg
Norm	EN124-2
Package	5 ks/pal
Load class	Extreme traffic load

Poklop EUROPA 9 s pantem, víko litina s ventilací s otevřeným pantem tichý design s mušlí, pružinové zajištění víka v rámu, E600, rám beton-litina roznášecí DN1200 v.200mm bez osazení pro lapač, horizontální a vertikální PUR tlumící vložka na víku

Cover

Cast iron with ventilation with quiet design
Integrated KASI-PUR damping insert with high resistance
Hinge with possibility of removal from the frame
Safety lock at 90?
Lid weight 49kg

Frame

Distribution frame 1200mm without mounting for catcher
Frame height 200 mm
Machined frame contact surface to 0.1mm
Use with BAR-V and BAR adjustment rings
Three handling hinges

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Suitable for places with extreme traffic load
added lid opening - pocket for crowbar
Lid safety lock at 90?
