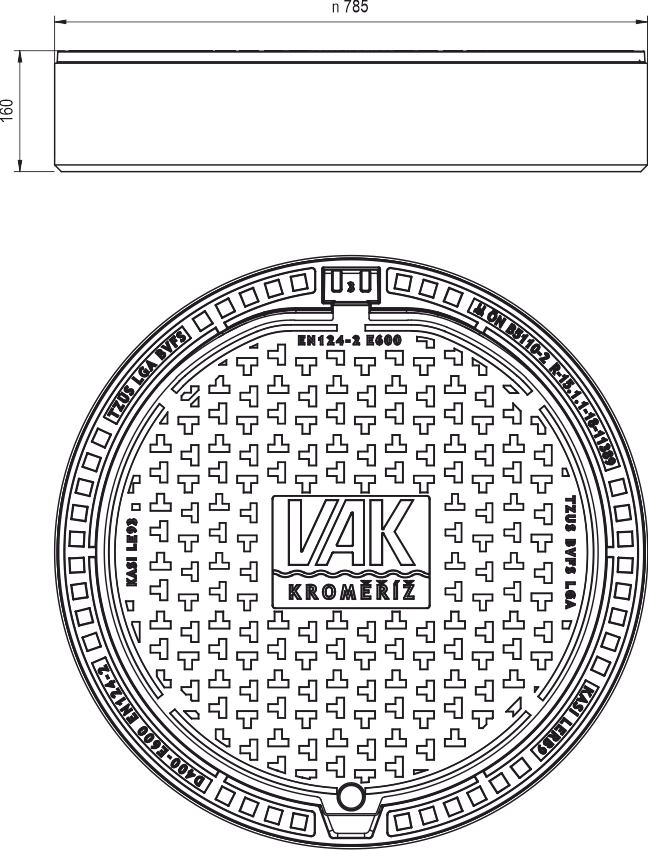

Manhole cover without ventilation in a cast-iron concrete frame
E600 - areas exposed to high loads from heavy machinery
| Code | KEB93xxxKM |
| Material | Concrete, Cast iron |
| Weight | 126 kg |
| Norm | EN124-2 |
| Package | 10 ks/pal |
| Load class | E600 |
Poklop EUROPA 9 s pantem, víko litina bez ventilace s otevřeným pantem, pružinové zajištění víka v rámu, E600, rám beton-litina v.160mm bez osazení pro lapač, horizontální a vertikální PUR tlumící vložka na víku, logo VAK Kroměříž
Cover
- Integrated KASI-PUR damping insert with high resistance
- Hinge with possibility of removal from the frame
- Custom logo motif on the lid
- Safety lock at 90?
- Lid weight 47kg
Frame
- Cast-concrete frame without mounting for the trap
- Frame height 160 mm
- Machined frame contact surface to 0.1mm
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Option of screw locking
- Suitable for places with extreme traffic load
- Lid safety lock at 90?
Customer solutions
Damping insert
Max. opening angle
