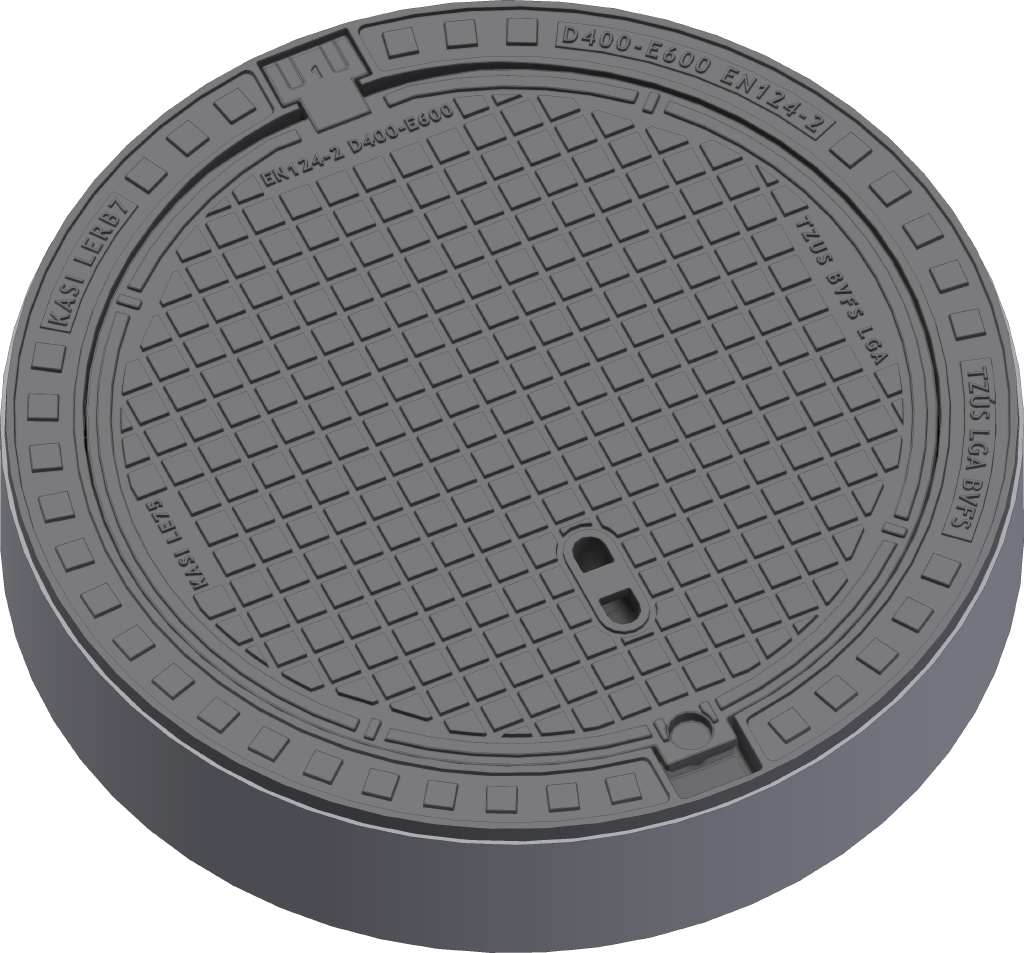

Manhole cover without ventilation in a cast-iron concrete frame
E600 - areas exposed to high loads from heavy machinery
| Code | KEA7Q |
| Material | Concrete, Cast iron |
| Weight | 126 kg |
| Norm | EN124-2 |
| Package | 10 ks/pal |
| Load class | Heavy traffic load |
Poklop EUROPA 7 s pantem, víko litina bez ventilace s uzavřeným pantem tichý design, pružinové zajištění víka v rámu, E600, rám beton-litina v.160mm s osazením pro lapač, horizontální PUR tlumící vložka na rámu, s mušlí
Cover
- Cast iron non-vented with quiet design
- Machined lid seating surface to 0.3mm
- Hinge secured against removal from the frame
- Safety lock at 90?
- Custom theme/logo option
Frame
- Cast-concrete frame with mounting for trap
- Frame height 160 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- only with UL7 three-arm trap
- Option of screw locking
- Suitable for places with high traffic load
- added lid opening - pocket for crowbar
Customer solutions
Damping insert
Max. opening angle
Anti-theft protection
Quiet design
