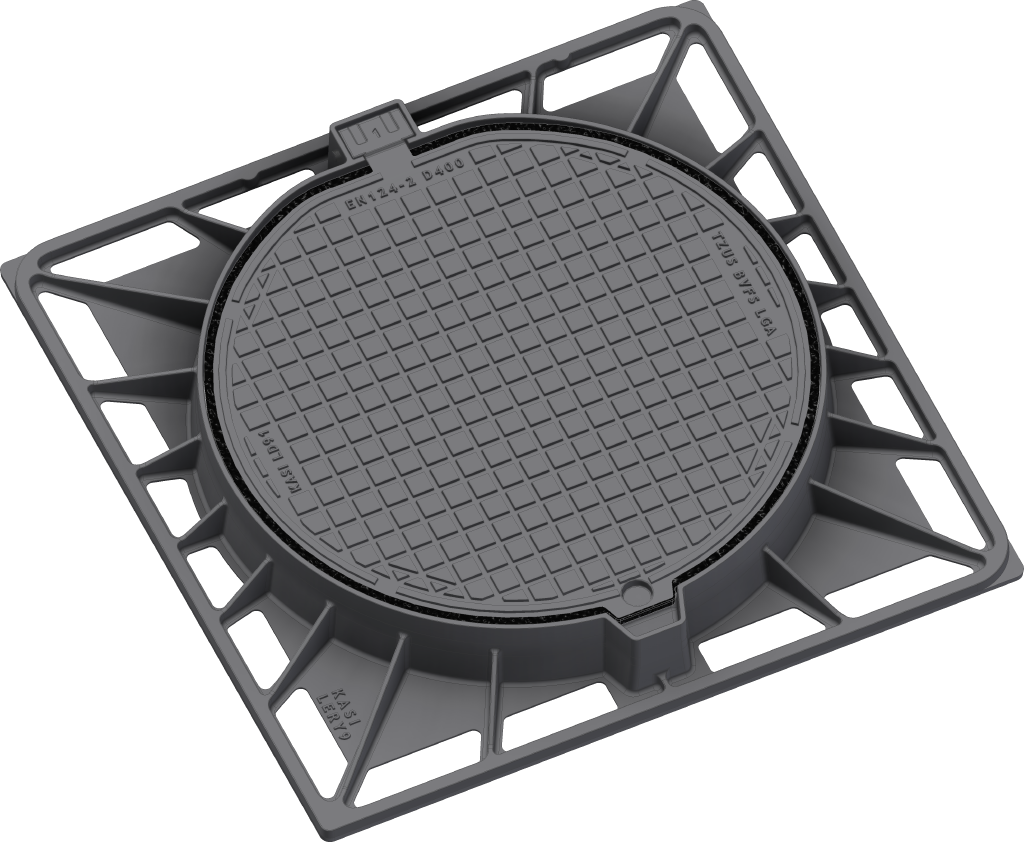

Manhole cover without ventilation in a square cast iron frame

D400 - heavy traffic load

Code	KDY95
Material	Cast iron
Weight	77 kg
Norm	EN124-2
Package	10 ks/pal
Load class	Heavy traffic load

Cover EUROPA 9 with hinge, cast iron lid without ventilation with closed hinge, quiet design, spring-loaded lid locking in the frame, D400, cast iron frame, square, h. 100mm, without a trap, horizontal and vertical PUR damping insert on the lid

Cover

Integrated KASI-PUR damping insert with high resistance
Hinge secured against removal from the frame
Cast iron without venting with a quiet design.
Custom theme/logo option
Safety lock at 90?

Frame

Cast iron frame with foot without shoulder for trap
Frame height 100 mm
Machined frame contact surface to 0.1mm
Use with BAR-V and BAR adjustment rings

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Suitable for places with high traffic load
Lid safety lock at 90?
custom lid motif possible
