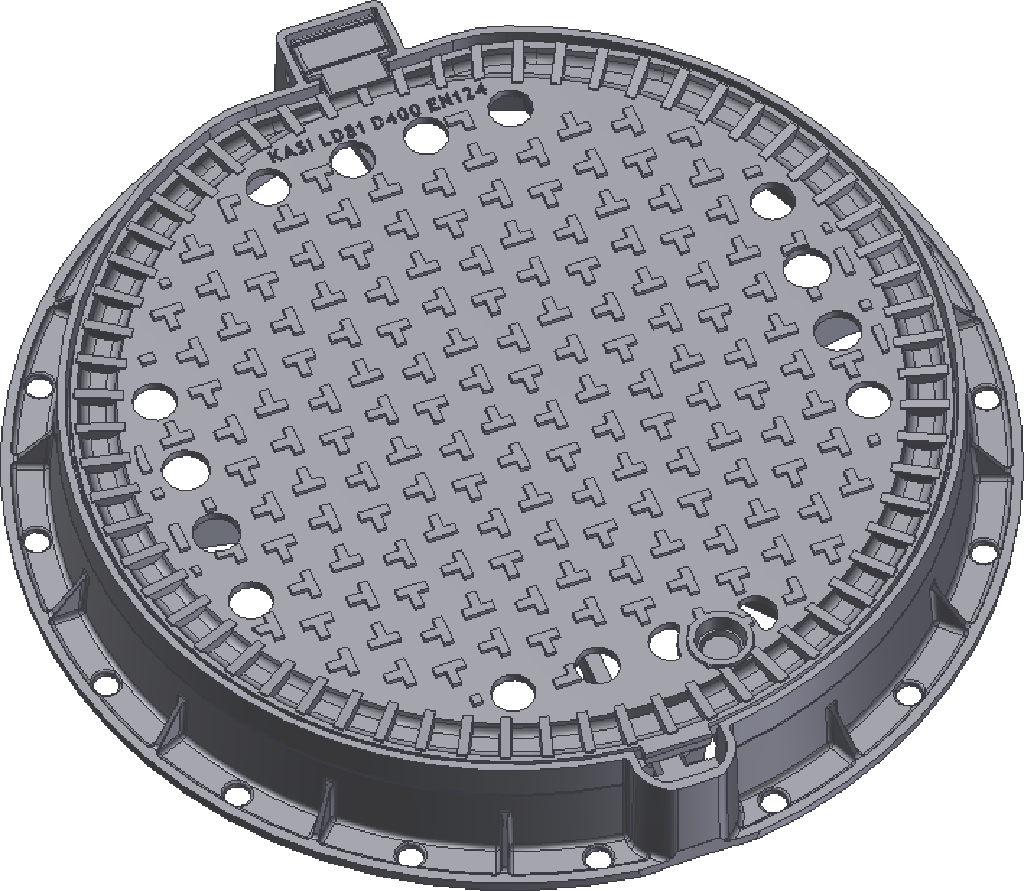

Manhole cover with ventilation in a cast iron frame with foot
D400 - heavy traffic load
| Code | KDU82B |
| Material | Cast iron |
| Weight | 68 kg |
| Norm | EN124-2 |
| Package | 16 ks/pal |
| Load class | D400 |
| Traffic load | Heavy traffic load |
cover with hinge vertical EPDM shock-absorbing lining, spring-loaded lid locking in frame
Cover
- Cast iron with ventilation and anti-slip design.
- Hinge secured against removal from the frame
- EPDM damping insert - resistant to oils
- Safety lock at 90?
- Lid weight 47kg
Frame
- Frame height 120 mm
- Use with BAR-V and BAR adjustment rings
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Option of screw locking
- Suitable for places with high traffic load
- Lid safety lock at 90?
- custom lid motif possible
Customer solutions
Damping insert
Max. opening angle
Anti-theft protection
