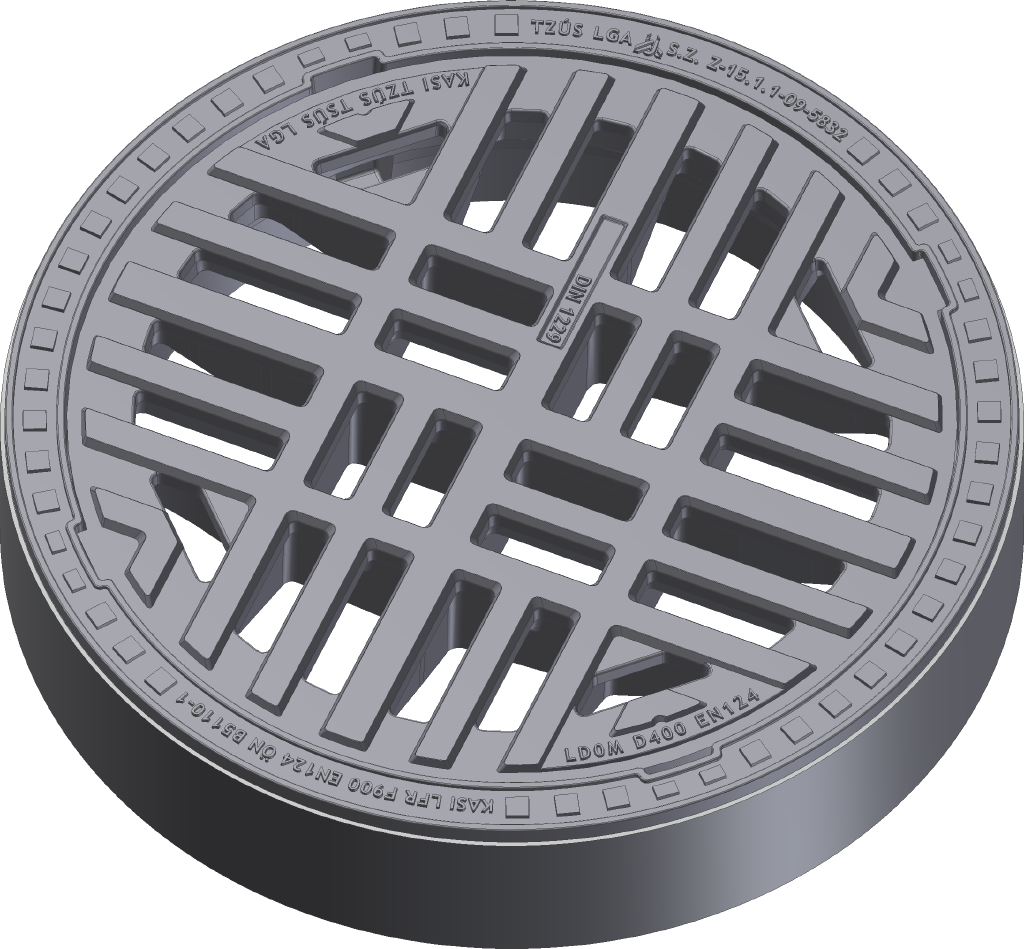

Circular inlet grille in cast-iron concrete frame
D400 - heavy traffic load
| Code | KDT0M |
| Material | Concrete, Cast iron |
| Weight | 168 kg |
| Norm | DIN1229, EN124-2 |
| Package | 8 ks/pal |
| Load class | Heavy traffic load |
cover without hinge, horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- Lid weight 90kg
Frame
- Frame height 160 mm
- Cast-concrete frame with mounting for trap
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Suitable for places with high traffic load
Damping insert
Hatch without hinge
rainwater drainage
