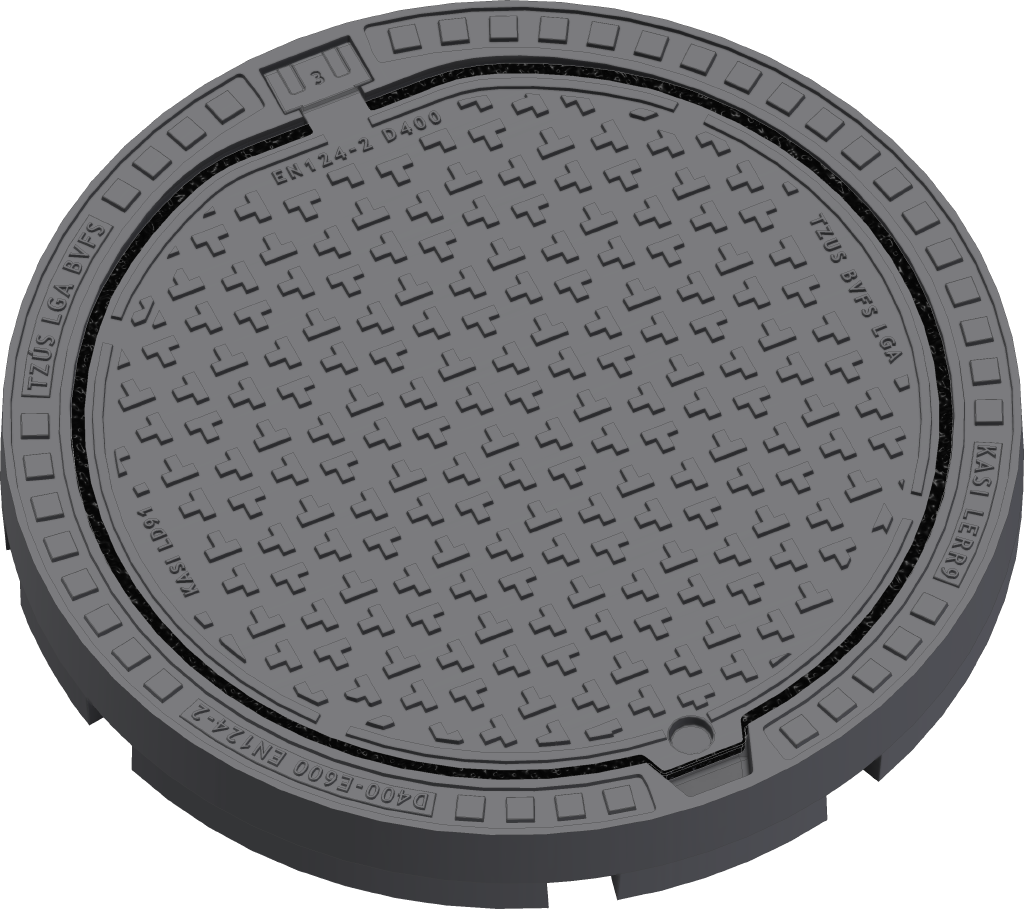

Manhole cover without ventilation in smooth cast iron frame
D400 - heavy traffic loads
| Code | KDR93C |
| Material | Cast iron |
| Weight | 76 kg |
| Package | 16 ks/pal |
| Load class | Heavy traffic load |
cover D400 with hinge, KASI PUR shock-absorbing lining, spring-loaded lid locking in frame
Cover
- Cast iron with ventilation with anti-slip design.
- Lid weight 42 kg
- Lid secured in frame with multi-point springs
- Integrated KASI-PUR damping insert with high resistance
- Safety locking at 90°, max. opening 120°
Frame
- Frame height 100mm, weight 34 kg
- Use with BAR-V and BAR adjustment rings
- Suitable for places with high traffic loads
- Smooth cast iron frame with trap mounting
Other
- Option with screw locking
- custom motif on the lid possible
- Hatch comes with black finish
Custom solutions
Damping insert
Max. opening angle
