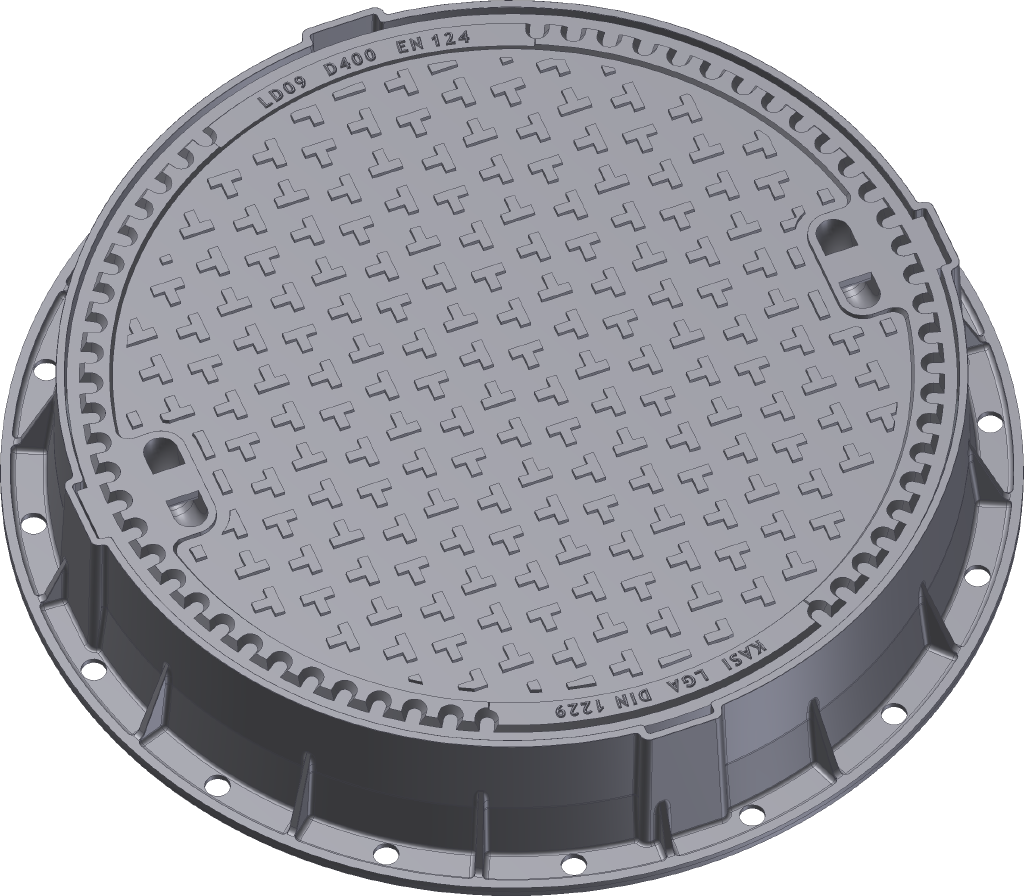

Manhole cover without ventilation in cast iron frame with foot
D400 - heavy traffic load
| Code | KDP09 |
| Material | Cast iron |
| Weight | 115 kg |
| Norm | DIN1229, EN124-2 |
| Package | 10 ks/pal |
| Load class | Heavy traffic load |
cover without hinge, horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- Cast iron without venting with anti-slip design.
- Custom theme/logo option
- Lid weight 90kg
Frame

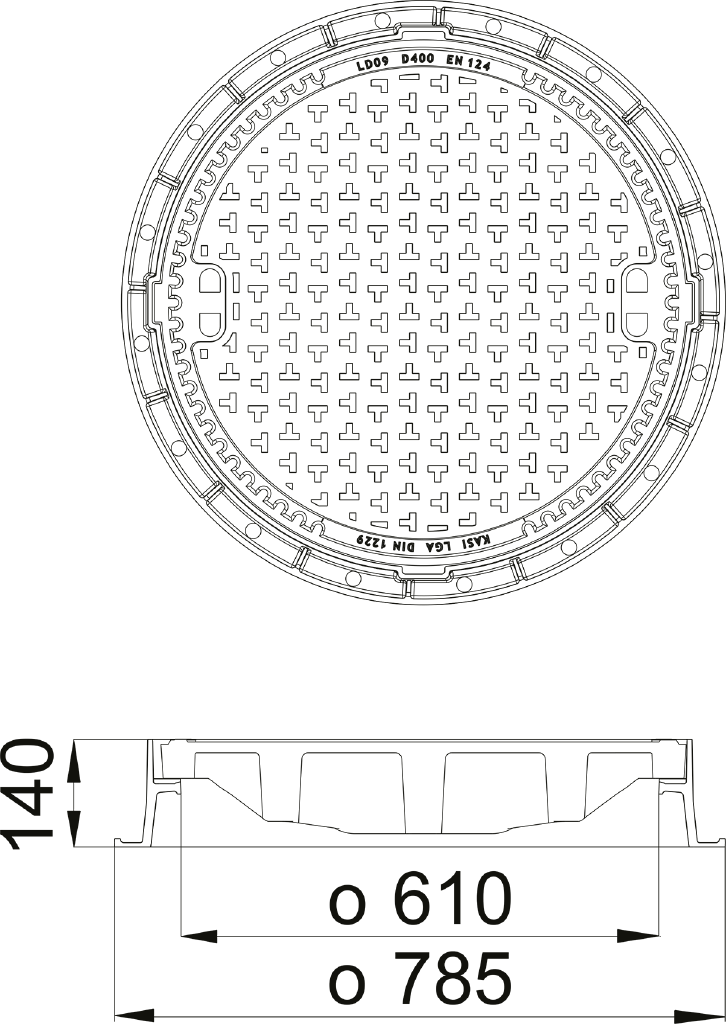

- Frame height 140 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Suitable for places with high traffic load
- custom lid motif possible
Customer solutions
Damping insert
Hatch without hinge
