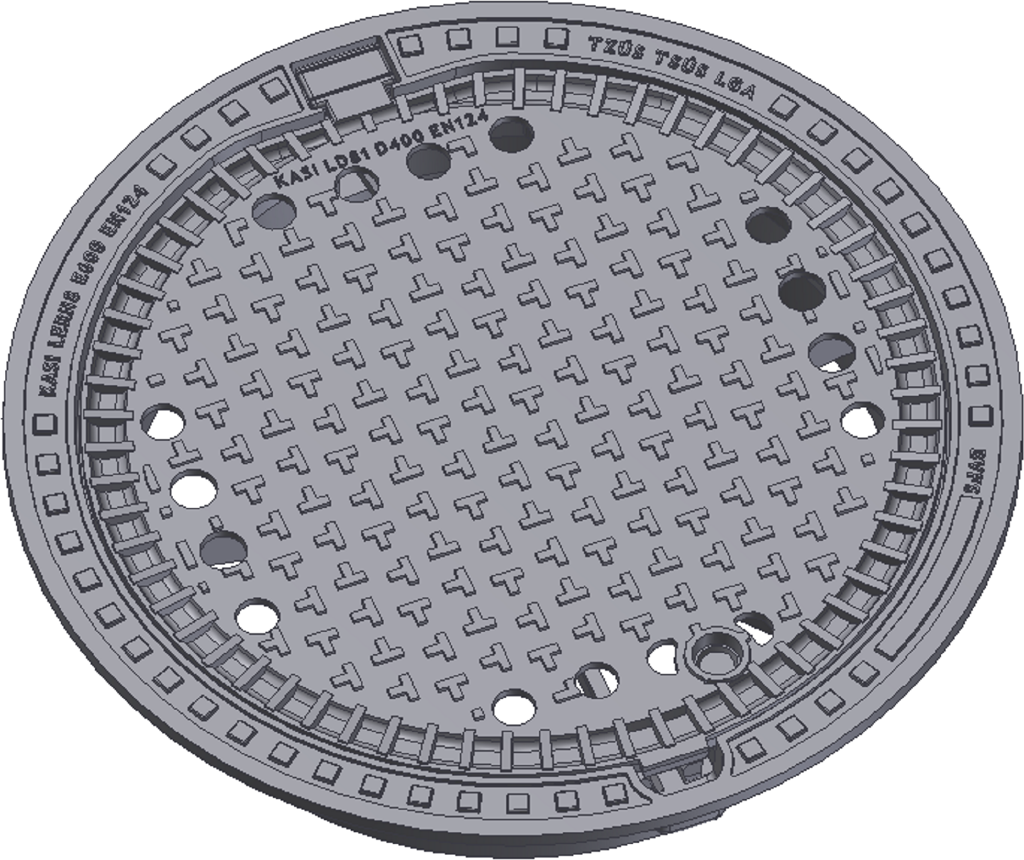

Manhole cover with ventilation in a self-leveling frame
D400 - heavy traffic load
| Code | KDN84B |
| Material | Cast iron |
| Weight | 69 kg |
| Norm | EN124-2 |
| Package | 14 ks/pal |
| Load class | Heavy traffic load |
cover with hinge vertical EPDM shock-absorbing lining, spring-loaded lid locking in frame
Cover
- Cast iron with ventilation and anti-slip design.
- Hinge with possibility of removal from the frame
- Safety lock at 90?
- Lid weight 37kg
- Custom theme/logo option
Frame
- Self-leveling frame with mounting for trap
- Frame height 180 mm
- Use with BAR-V and BAR adjustment rings
- Installation without guide ring - the frame can be inserted directly into the shaft
- Installation in the running layer and load transfer even outside the shaft
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Option of screw locking
- Suitable for places with high traffic load
- Lid safety lock at 90?
- custom lid motif possible
Customer solutions
Damping insert
Max. opening angle
