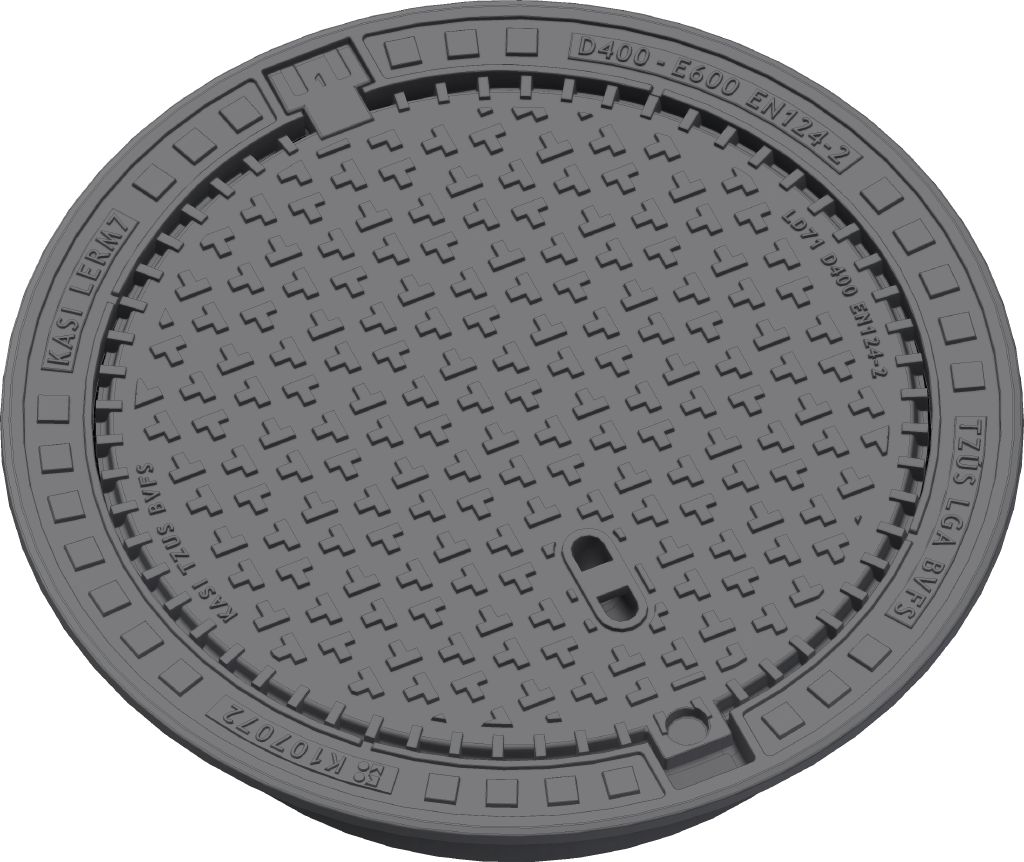

Manhole cover with ventilation in a self-leveling frame

D400 - light traffic load

Code	KDN7I
Material	Cast iron
Weight	60 kg
Norm	EN124-2
Package	14 ks/pal
Load class	Light traffic load

Poklop EUROPA 7 s pantem, víko litina bez ventilace s uzavřeným pantem, pružinové zajištění víka v rámu, D400, rám litina samonivelační s osazením pro lapač v.160mm, horizontální PUR tlumící vložka na rámu, s mušlí

Cover

Cast iron non-vented with anti-slip design
Machined lid seating surface to 0.3mm
Hinge secured against removal from the frame
Safety lock at 90?
Lid weight 30kg

Frame

Self-leveling frame with mounting for trap
Frame height 160 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance
Installation without guide ring - the frame can be inserted directly into the shaft

Other

The cover is supplied without surface treatment - painted variants can be ordered
only with UL7 three-arm trap
Option of screw locking
Suitable for places with light traffic load
added lid opening - pocket for crowbar
