Manhole cover without ventilation in self-leveling frame
D400 - heavy traffic load
| Code | KDM2K |
| Material | Cast iron |
| Weight | 93 kg |
| Norm | EN124-2 |
| Package | 10 ks/pal |
| Load class | Heavy traffic load |
cover without hinge, horizontal PUR shock-absorbing lining on frame, EPDM shock-absorbing lining on cover, without spring-loaded lid locking in frame

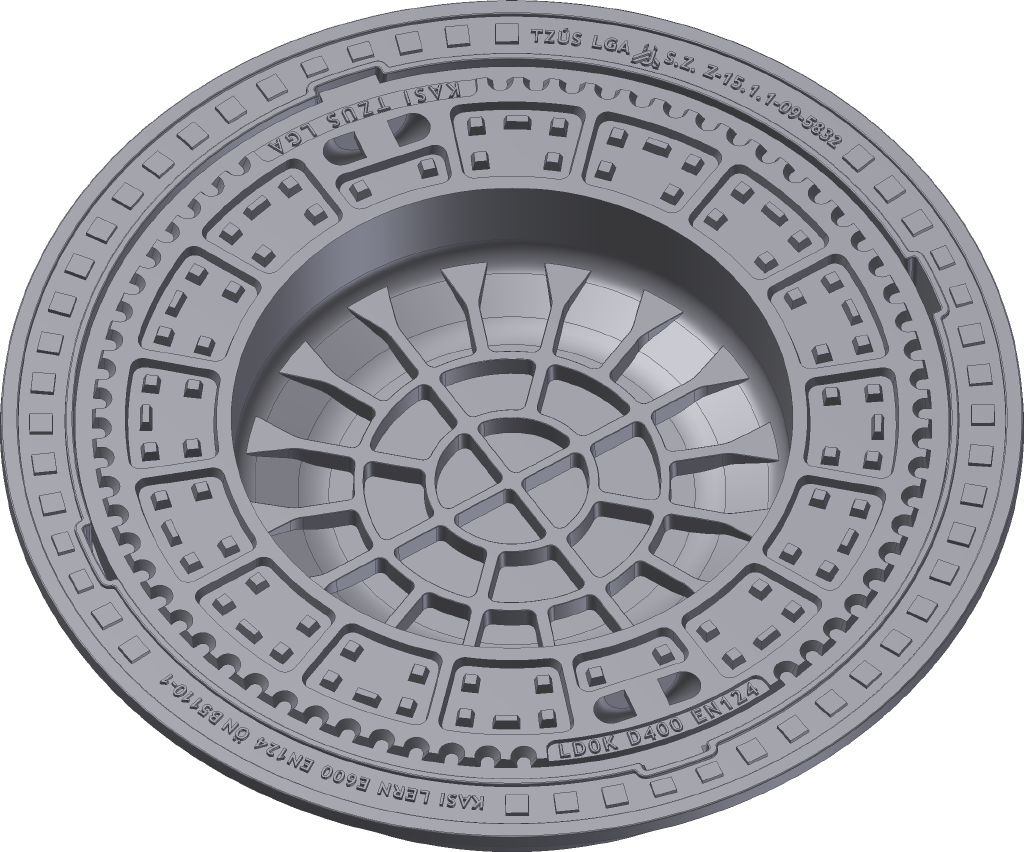

Cover
- Cast iron without venting with anti-slip design.
- Custom theme/logo option
- Lid weight 63kg
- EPDM damping insert - resistant to oils
Frame
- Self-leveling frame without mounting for trap
- Frame height 160 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
- Installation without guide ring - the frame can be inserted directly into the shaft
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Suitable for places with high traffic load
- custom lid motif possible
Customer solutions
Damping insert
