Manhole cover without ventilation in self-levelling frame

D400 - heavy traffic loads

series
orange-d400.svg> orange-truck.svg> orange-dn600.svg>
Code KDM05
Material Cast iron
Weight 113 kg
Norm EN124-2
Package 10 ks/pal
Load class Heavy traffic load

cover without hinge, horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame

Cover

  • Cast iron with ventilation with anti-slip design.
  • Lid weight 83 kg
  • Permits your own design/logo

Frame

  • Suitable for places with high traffic loads
  • Frame height 160mm, weight 30 kg
  • Integrated PUR damping insert with high resistance
  • Installation in the running layer and load transfer outside the well
  • Installation without guide ring – frame can be inserted directly into well

Other

  • custom motif on the lid possible
  • Hatch comes without coating – painted options can be ordered

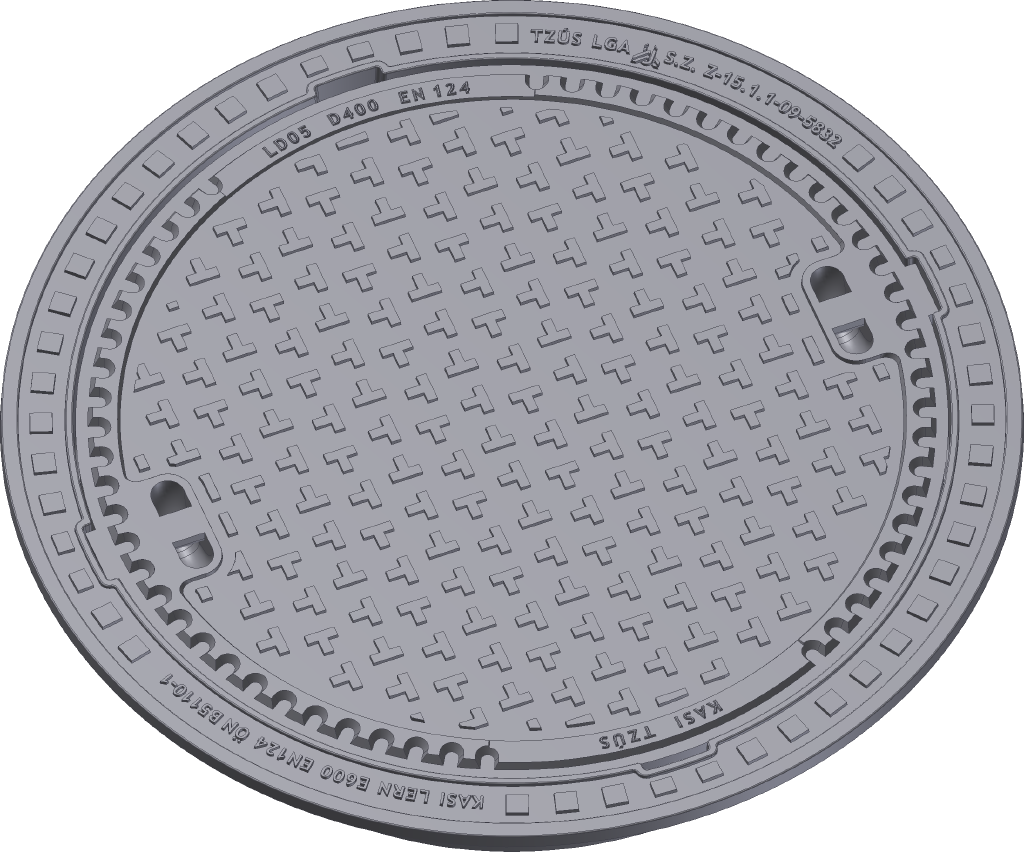

KDM05 cover KDM05 cover
Custom solutions

Custom solutions

Damping insert

Damping insert

Hatch without hinge

Hatch without hinge
