Manhole cover with ventilation in self-levelling frame

D400 - heavy traffic loads

series
orange-d400.svg> orange-truck.svg> orange-dn600.svg>
Code KDM01
Material Concrete, Cast iron
Weight 113 kg
Norm EN124-2
Package 10 ks/pal
Load class Heavy traffic load

cover without hinge, horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame

Cover

  • Lid weight 83 kg
  • With concrete fill with ventilation – unattractive to thieves

Frame

  • Suitable for places with high traffic loads
  • Frame height 160mm, weight 30 kg
  • Integrated PUR damping insert with high resistance
  • Installation in the running layer and load transfer outside the well
  • Installation without guide ring – frame can be inserted directly into well

Other

  • Hatch comes without coating – painted options can be ordered

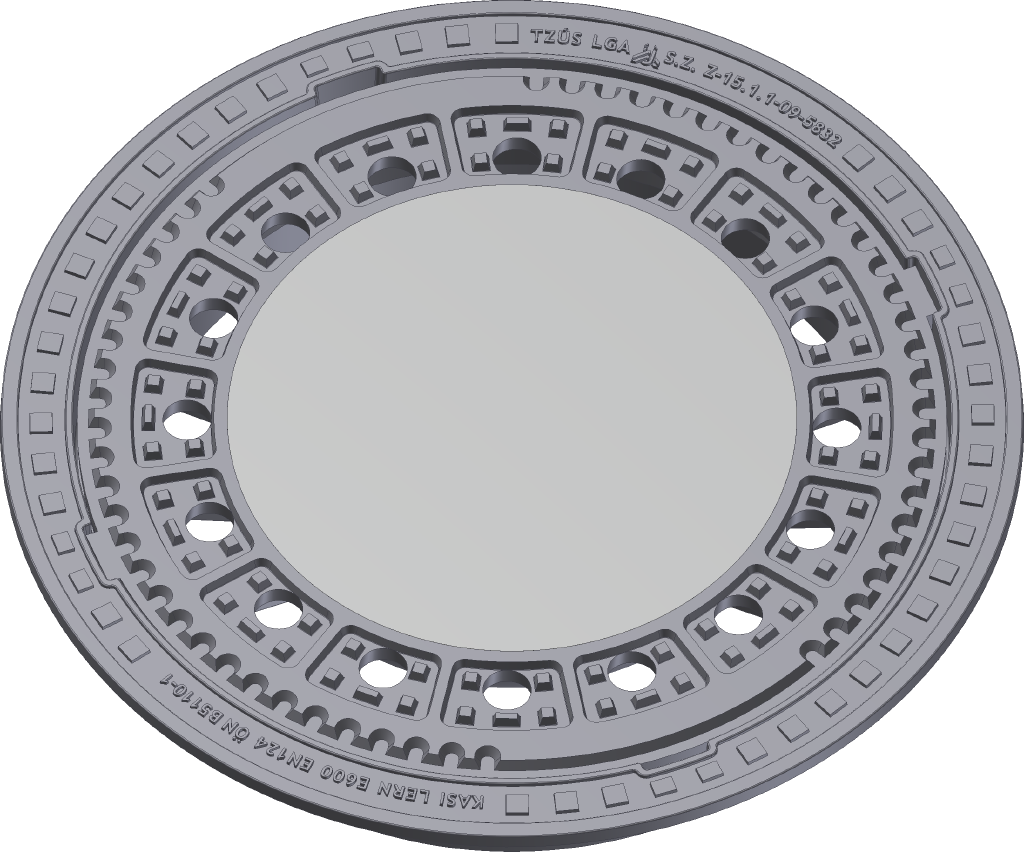

KDM01 cover KDM01 cover
Damping insert

Damping insert

Concrete and cast iron lid

Concrete and cast iron lid

Hatch without hinge

Hatch without hinge
