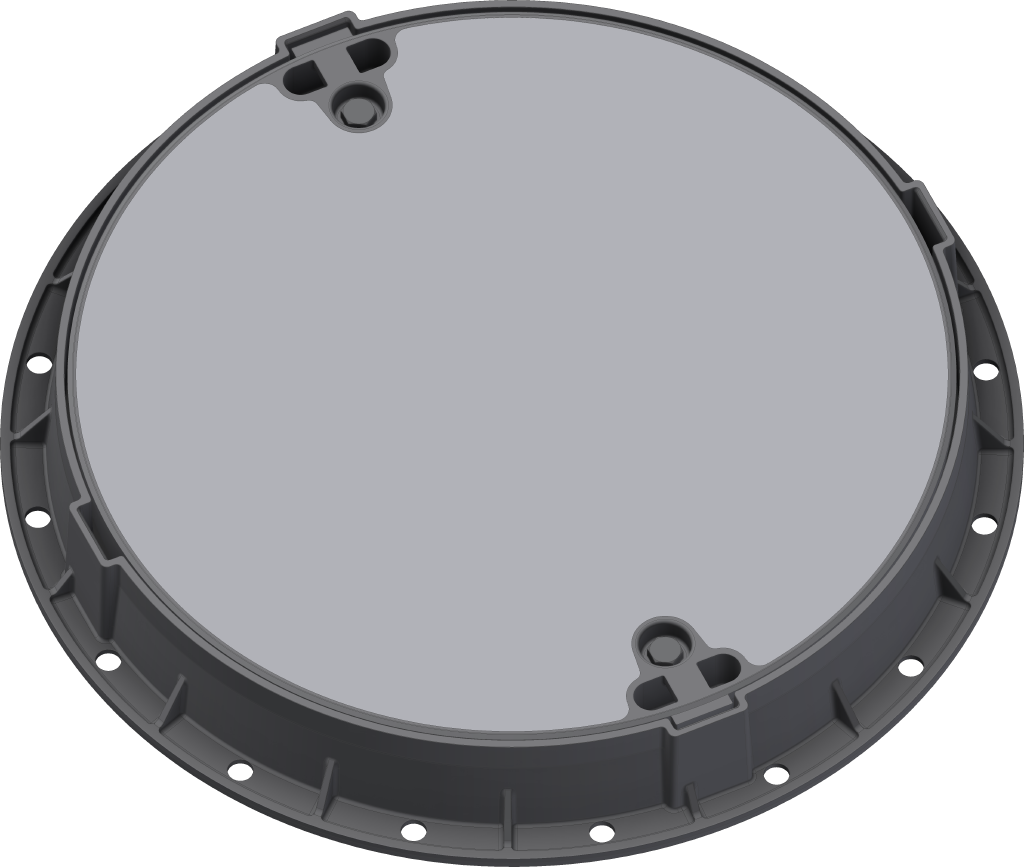

Manhole cover
D400 - heavy traffic load
| Code | KDLV12B4 |
| Material | Concrete, Cast iron |
| Weight | 112 kg |
| Norm | DIN1229, EN124-2 |
| Package | 10 ks/pal |
| Load class | Heavy traffic load |
without hinge, PUR shock-absorbing lining, without spring-loaded lid locking in frame, watertight to 0.5 bar
Cover
- Lid weight 90kg
Frame
- Cast iron frame with foot without shoulder for trap
- Frame height 100 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- Suitable for places with high traffic load
- chemical resistance of concrete XF4
Damping insert
Concrete-cast iron lid
Hatch without hinge
