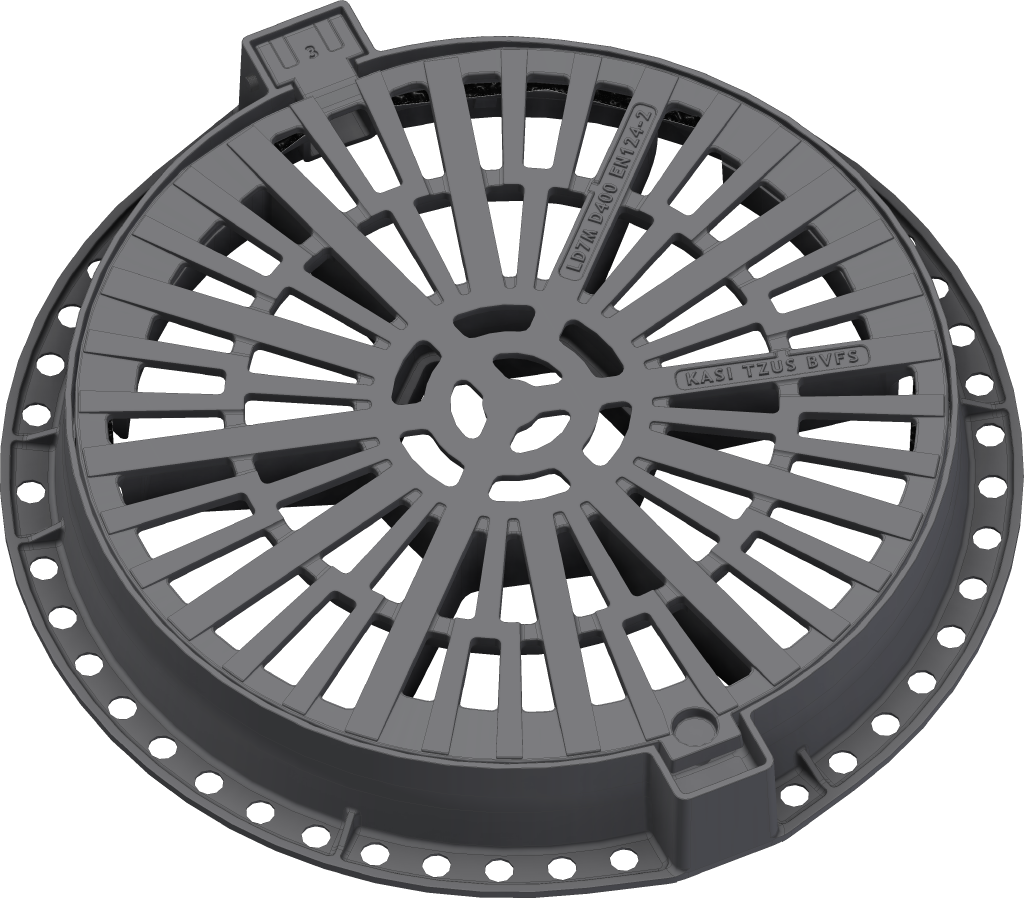

Inlet grille in cast iron frame with foot

D400 - light traffic load

Code	KDLL7N
Material	Cast iron
Weight	49 kg
Norm	EN124-2
Package	20 ks/pal
Load class	Light traffic load

Poklop EUROPA 7 s pantem, víko litina kruhová vtoková mříž s otevřeným pantem, pružinové zajištění víka v rámu, D400, rám litina patkový v.100mm bez osazení pro lapač nečistot, horizontální PUR tlumící vložka na rámu

Cover

Machined lid seating surface to 0.3mm
Hinge with possibility of removal from the frame
Safety lock at 90?
Lid weight 32kg
Securing the lid in the frame with multi-point springs

Frame

Cast iron frame with foot without shoulder for trap
Frame height 100 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Suitable for places with light traffic load
Lid safety lock at 90?
