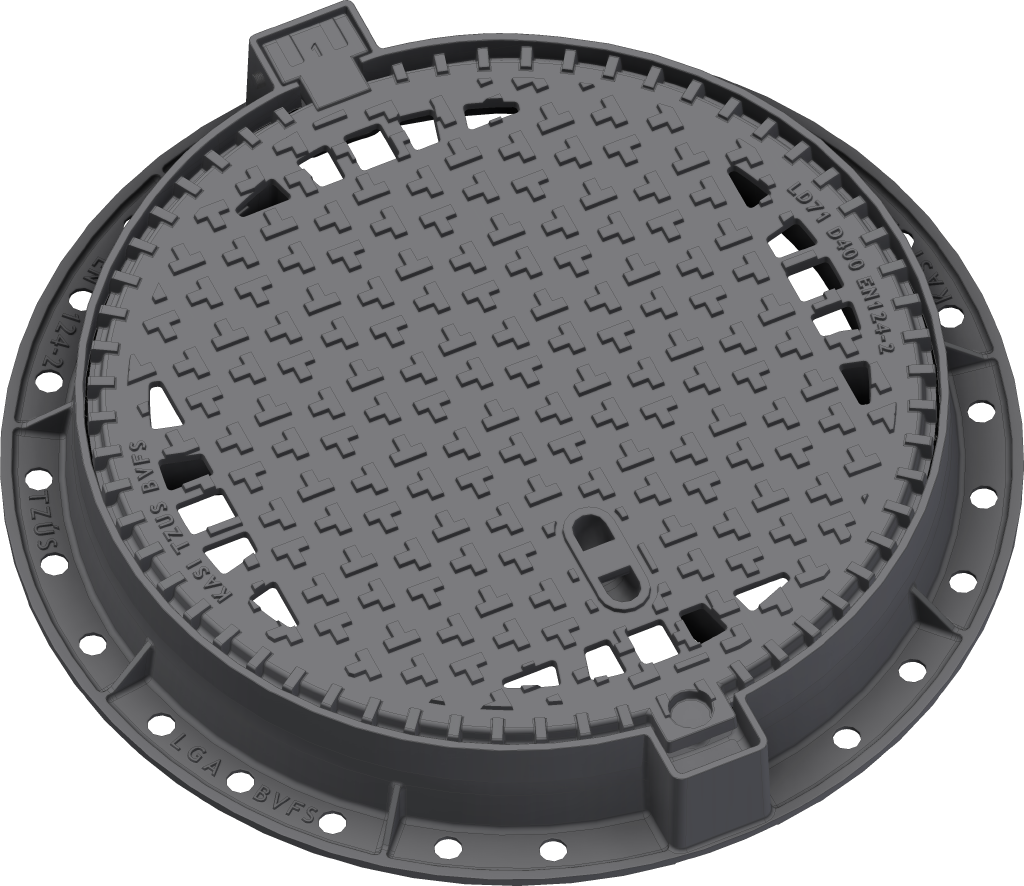

Manhole cover with ventilation in a cast iron frame with foot

D400 - light traffic load

Code	KDK7J
Material	Cast iron
Weight	49 kg
Norm	EN124-2
Package	20 ks/pal
Load class	Light traffic load

Poklop EUROPA 7 s pantem, víko litina s ventilací s uzavřeným pantem, pružinové zajištění víka v rámu, D400, rám litina patkový v.100mm s osazením pro lapač, horizontální a vertikální PUR tlumící vložka na rámu, s mušlí

Cover

Cast iron non-vented with anti-slip design
Machined lid seating surface to 0.3mm
Hinge secured against removal from the frame
Safety lock at 90?
Lid weight 29kg

Frame

Cast iron frame with foot with catcher attachment
Frame height 100 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance

Other

The cover is supplied without surface treatment - painted variants can be ordered
only with UL7 three-arm trap
Option of screw locking
Suitable for places with light traffic load
added lid opening - pocket for crowbar
