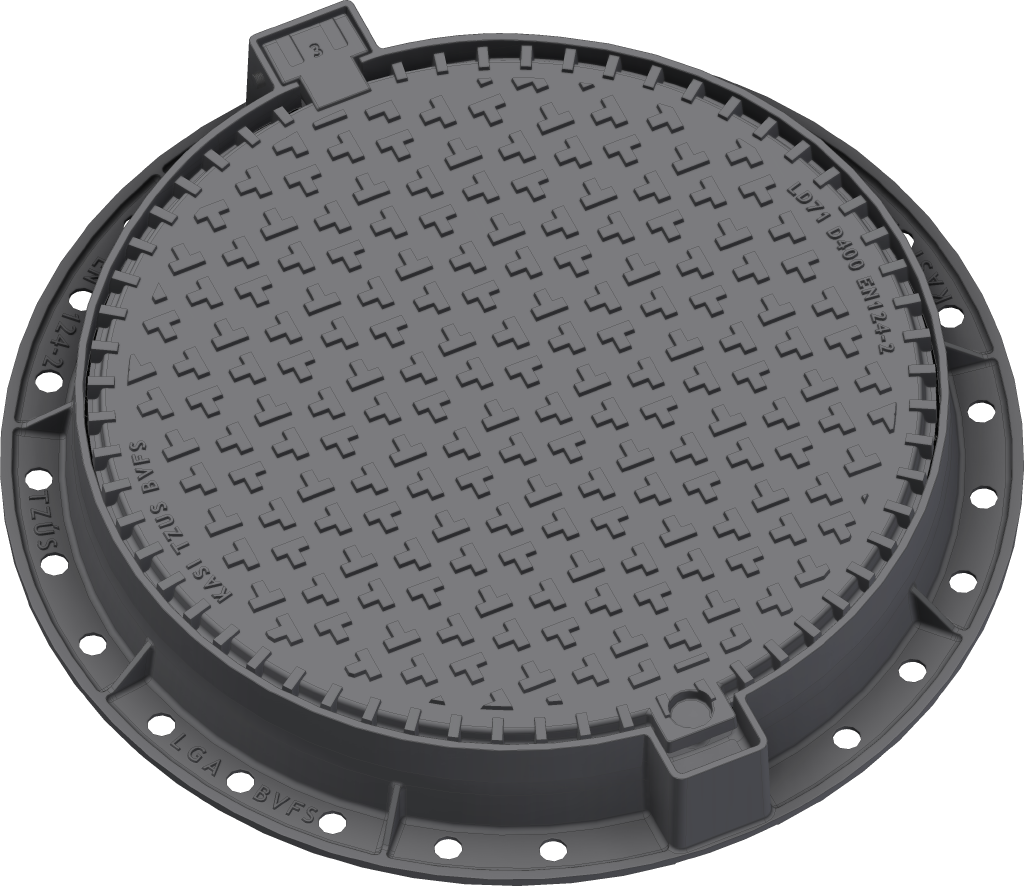

Manhole cover without ventilation in cast iron frame with foot

D400 - light traffic load

Code	KDK73
Material	Cast iron
Weight	50 kg
Norm	EN124-2
Package	20 ks/pal
Load class	Light traffic load

Poklop EUROPA 7 s pantem, víko litina bez ventilace s otevřeným pantem, pružinové zajištění víka v rámu, D400, rám litina patkový v.100mm s osazením pro lapač, horizontální a vertikální PUR tlumící vložka na rámu

Cover

Machined lid seating surface to 0.3mm
Cast iron without venting with anti-slip design.
Hinge with possibility of removal from the frame
Safety lock at 90?
Custom theme/logo option

Frame

Cast iron frame with foot with catcher attachment
Frame height 100 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance

Other

The cover is supplied without surface treatment - painted variants can be ordered
only with UL7 three-arm trap
Option of screw locking
Suitable for places with light traffic load
Lid safety lock at 90?
