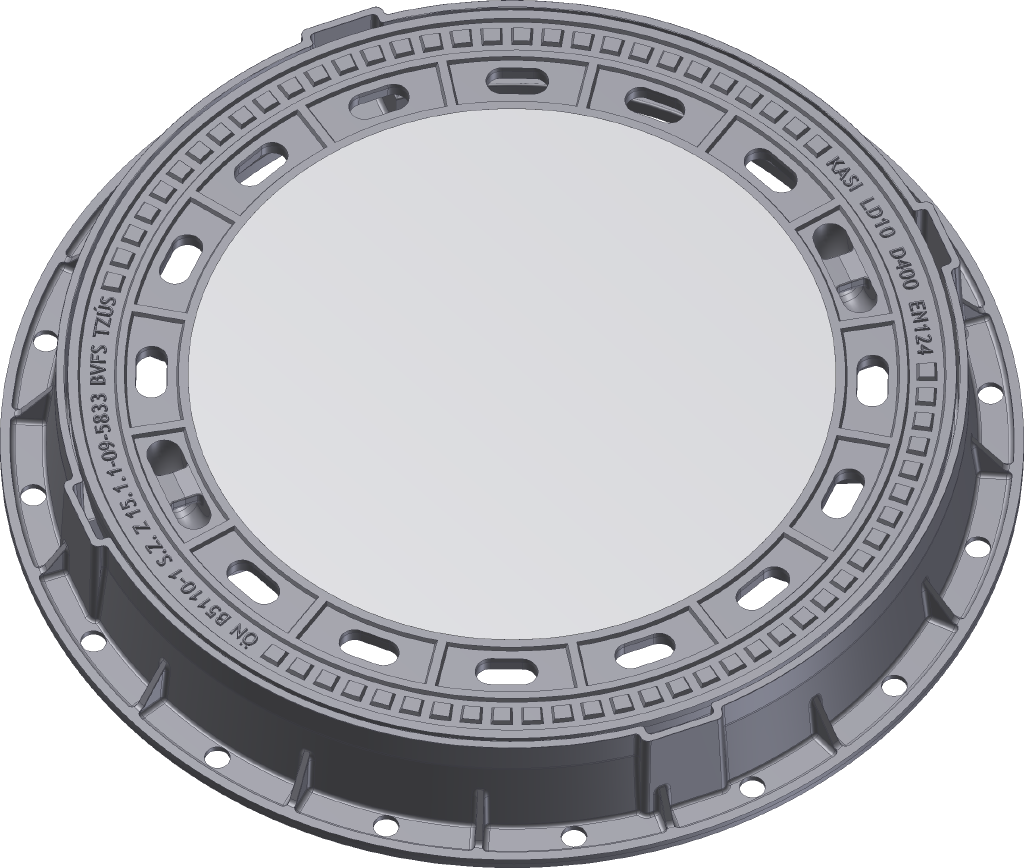

Manhole cover with ventilation in a cast iron frame with foot
D400 - light traffic load
| Code | KDK10 |
| Material | Concrete, Cast iron |
| Weight | 107 kg |
| Norm | EN124-2 |
| Package | 10 ks/pal |
| Load class | Light traffic load |
cover without hinge, horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- With concrete filling with ventilation - uninteresting for thieves
- Lid weight 84kg
Frame
- Cast iron frame with foot with catcher attachment
- Frame height 100 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- Suitable for places with light traffic load
- chemical resistance of concrete XF4
Damping insert
Concrete-cast iron lid
Hatch without hinge
