Inlet grille in the distribution frame

D400 - light traffic load

Code	KDI7M
Material	Concrete, Cast iron
Weight	176 kg
Norm	EN124-2
Package	6 ks/pal
Load class	Light traffic load

Poklop EUROPA 7 s pantem, víko litina kruhová vtoková mříž s uzavřeným pantem, pružinové zajištění víka v rámu, D400, rám beton-litina roznášecí DN1000 v.180mm bez osazení pro lapač, horizontální PUR tlumící vložka na rámu

Cover

Machined lid seating surface to 0.3mm
Hinge secured against removal from the frame
Safety lock at 90?
Lid weight 32kg
Securing the lid in the frame with multi-point springs

Frame

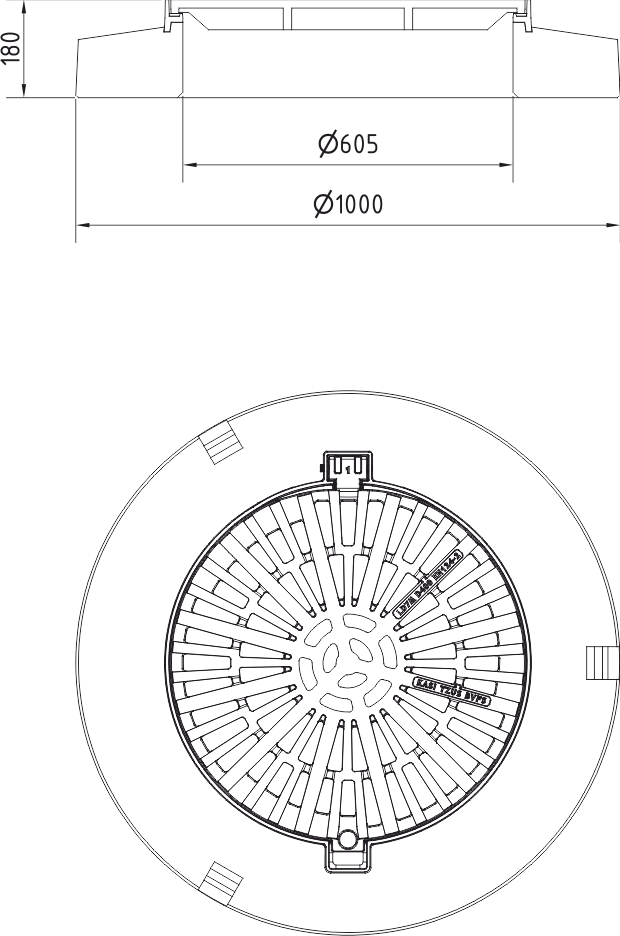

Distribution frame 1000mm without mounting for trap
Frame height 180 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance
Three handling hinges

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Suitable for places with light traffic load
Lid safety lock at 90?
