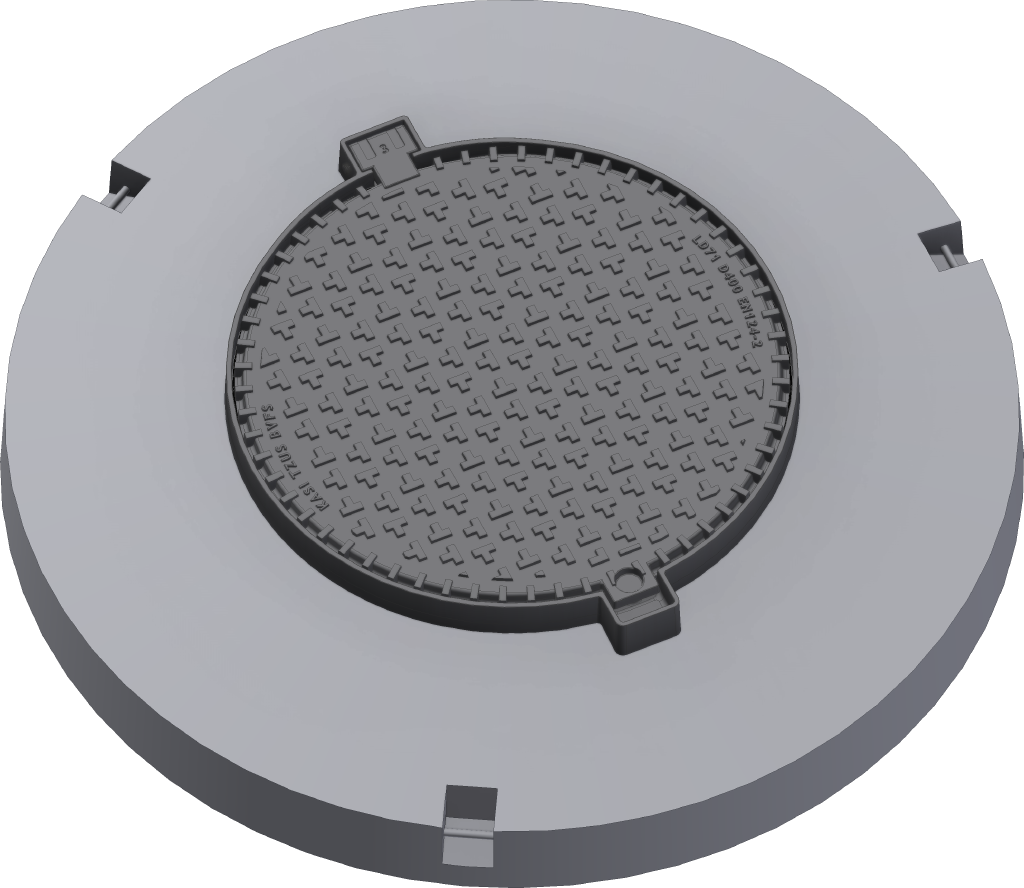

Manhole cover without ventilation in the distribution frame

D400 - light traffic load

Code	KDG73
Material	Concrete, Cast iron
Weight	295 kg
Norm	EN124-2
Package	5 ks/pal
Load class	Light traffic load

Poklop EUROPA 7 s pantem, víko litina bez ventilace s otevřeným pantem, pružinové zajištění víka v rámu, D400, rám beton-litina roznášecí DN1200 v.200mm bez osazení pro lapač, horizontální PUR tlumící vložka na rámu

Cover

Machined lid seating surface to 0.3mm
Cast iron without venting with anti-slip design.
Hinge with possibility of removal from the frame
Safety lock at 90?
Custom theme/logo option

Frame

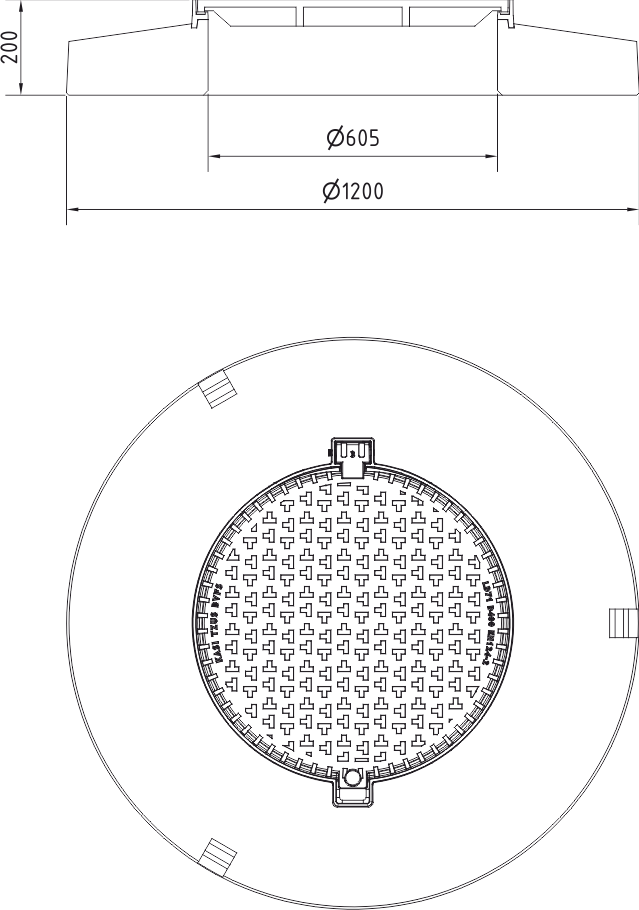

Distribution frame 1200mm without mounting for catcher
Frame height 200 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance
Three handling hinges

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Suitable for places with light traffic load
Lid safety lock at 90?
custom lid motif possible
