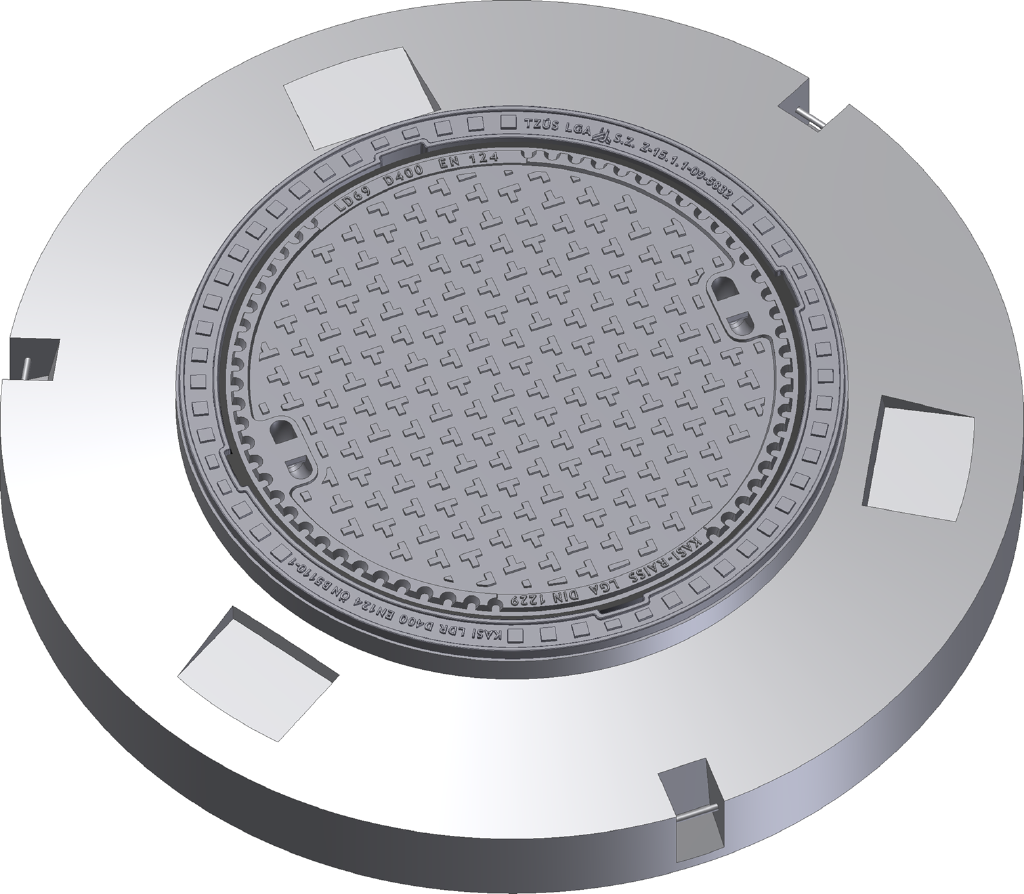

Manhole cover without ventilation in the distribution frame
D400 - extreme traffic load
| Code | KDG69 |
| Material | Concrete, Cast iron |
| Weight | 355 kg |
| Norm | DIN1229, EN124-2 |
| Package | 5 ks/pal |
| Load class | Extreme traffic load |
cover without hinge, horizontal PUR shock-absorbing lining on frame, horizontal and vertical PUR shock-absorbing lining on lid , without spring-loaded lid locking in frame
Cover
- Integrated KASI-PUR damping insert with high resistance
- Cast iron without venting with anti-slip design.
- Custom theme/logo option
- Lid weight 90kg
Frame
- Distribution frame 1200mm without mounting for catcher
- Frame height 200 mm
- Use with BAR-V and BAR adjustment rings
- Three handling hinges
- Suitable for replacing covers in places with slightly damaged cones.
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Suitable for places with extreme traffic load
- custom lid motif possible
Customer solutions
Damping insert
Hatch without hinge
