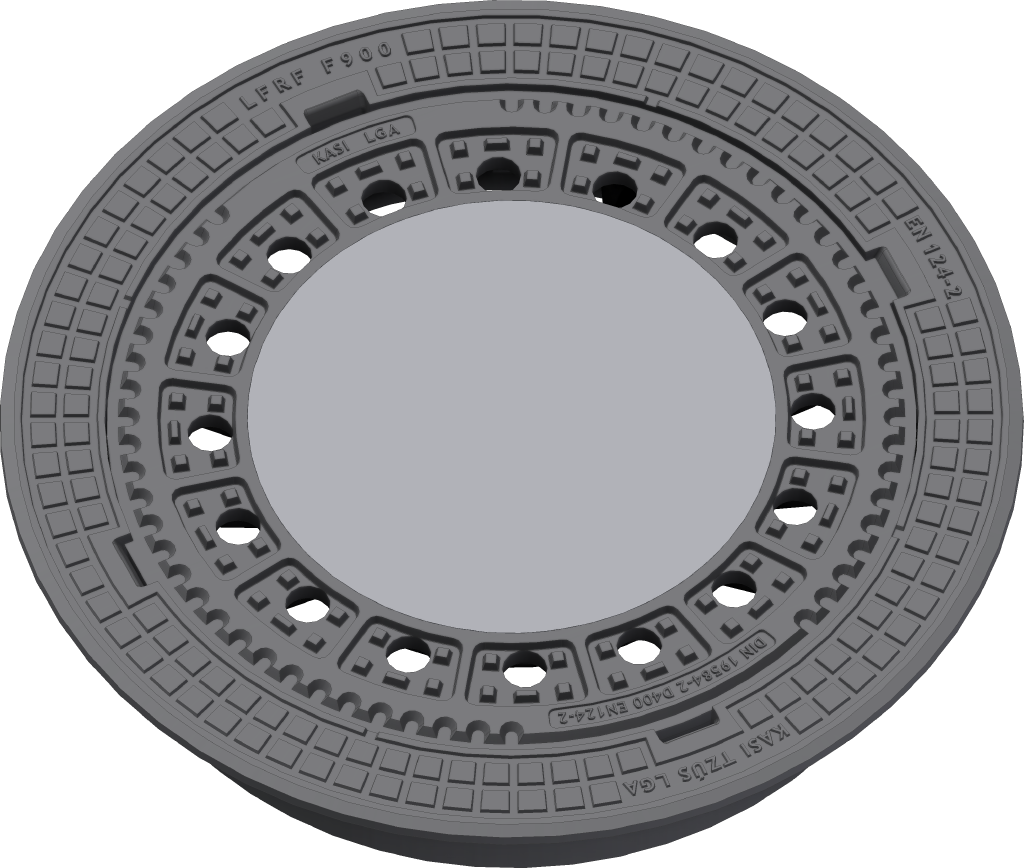

Manhole cover with ventilation in a self-leveling frame
D400 - heavy traffic load
| Code | KDF21 |
| Weight | 138 kg |
| Norm | DIN19584-2, DIN1229, EN124-2 |
| Package | 10 ks/pal |
| Load class | Heavy traffic load |
poklop bez pantu, EPDM tlumící vložka na víku, bez pružinového zajištění víka v rámu
Cover
- Lid weight 90kg
- EPDM damping insert - resistant to oils
Frame
- Self-leveling frame with mounting for trap
- Frame height 160 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
- Installation without guide ring - the frame can be inserted directly into the shaft
Other
- Suitable for places with high traffic load
Damping insert
Hatch without hinge
