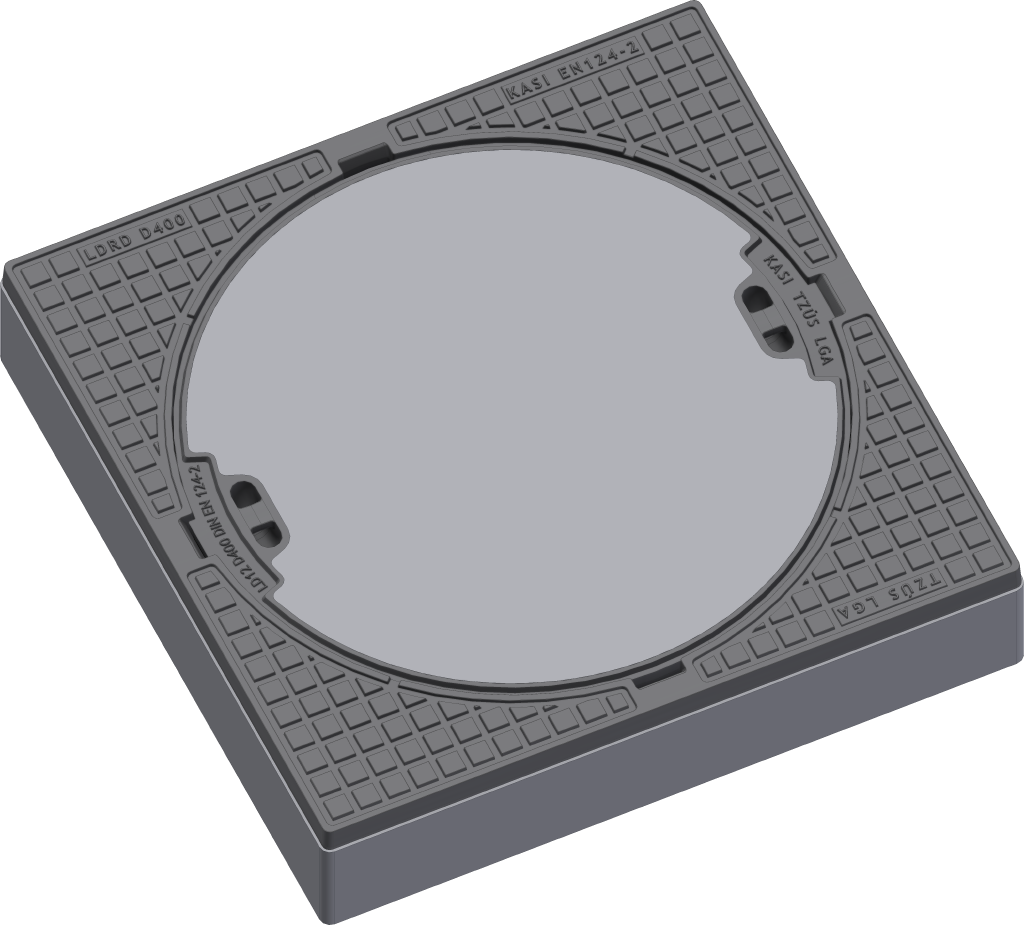

Manhole cover without ventilation in a square frame
D400 - heavy traffic load
| Code | KDD22 |
| Material | Concrete, Cast iron |
| Weight | 222 kg |
| Norm | DIN1229, EN124-2 |
| Package | 5 ks/pal |
| Load class | Heavy traffic load |
cover without hinge, EPDM shock-absorbing lining on cover, without spring-loaded lid locking in frame
Cover
- With concrete filling without ventilation - uninteresting for thieves
- Lid weight 90kg
- EPDM damping insert - resistant to oils
Frame
- Frame height 160 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- Suitable for places with high traffic load
- chemical resistance of concrete XF4
Damping insert
Concrete-cast iron lid
Hatch without hinge
