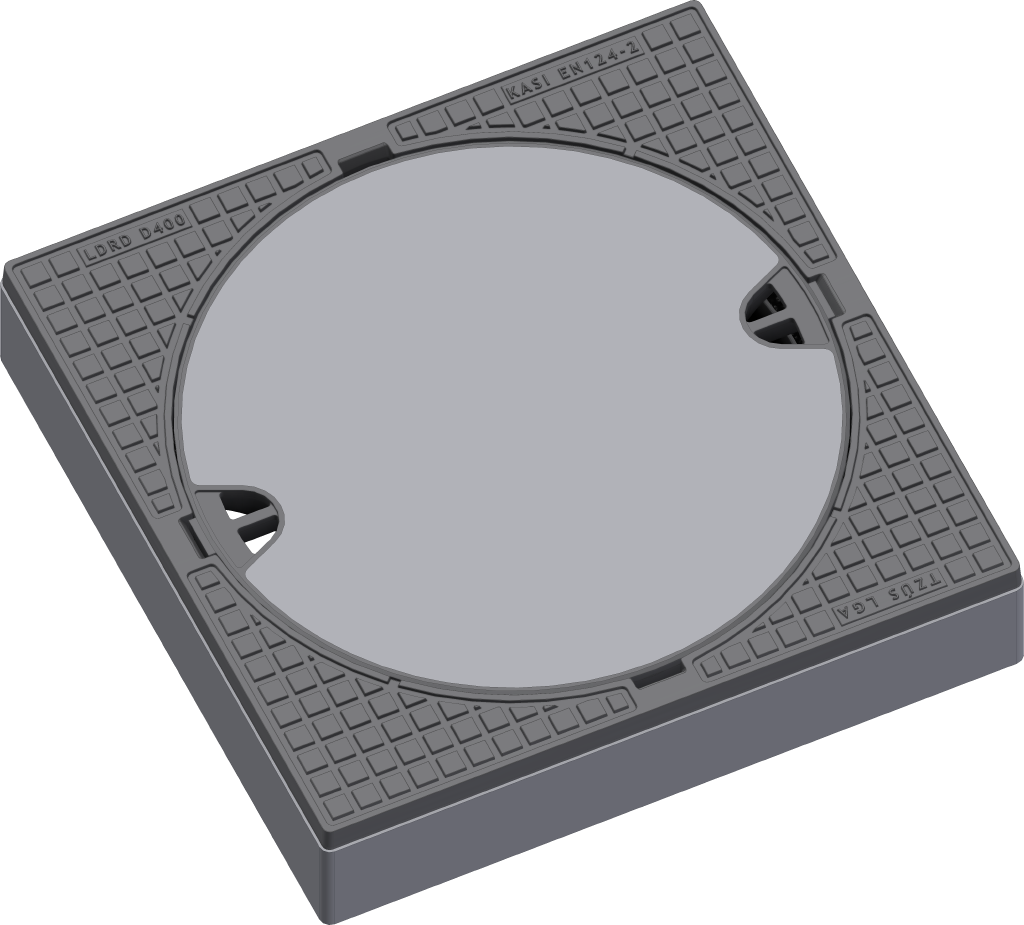

Manhole cover with ventilation in a square frame
D400 - heavy traffic load
| Code | KDD17 |
| Material | Concrete, Cast iron |
| Weight | 217 kg |
| Norm | EN124-2 |
| Package | 5 ks/pal |
| Load class | Heavy traffic load |
cover without hinge, horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- Cast iron with ventilation and anti-slip design.
- Lid weight 82kg
- Custom theme/logo option
Frame

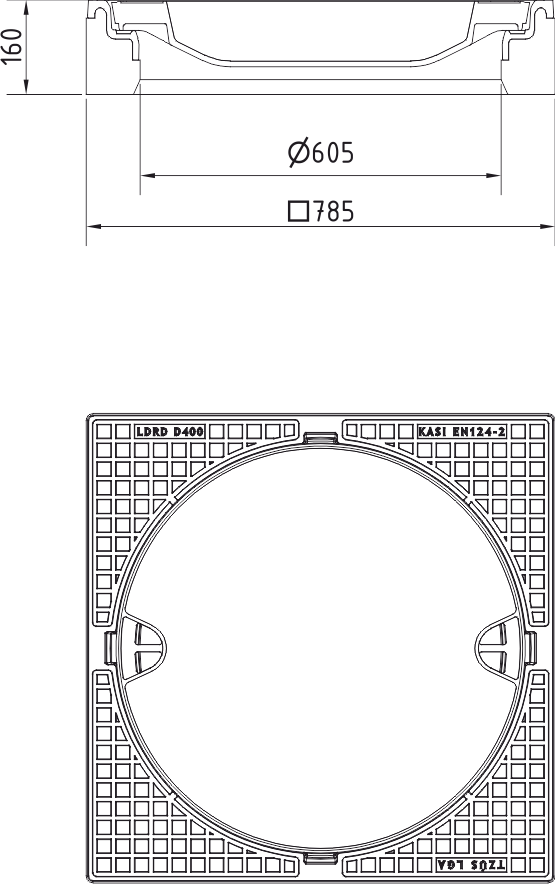

- Frame height 160 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Suitable for places with high traffic load
- custom lid motif possible
Customer solutions
Damping insert
Hatch without hinge
