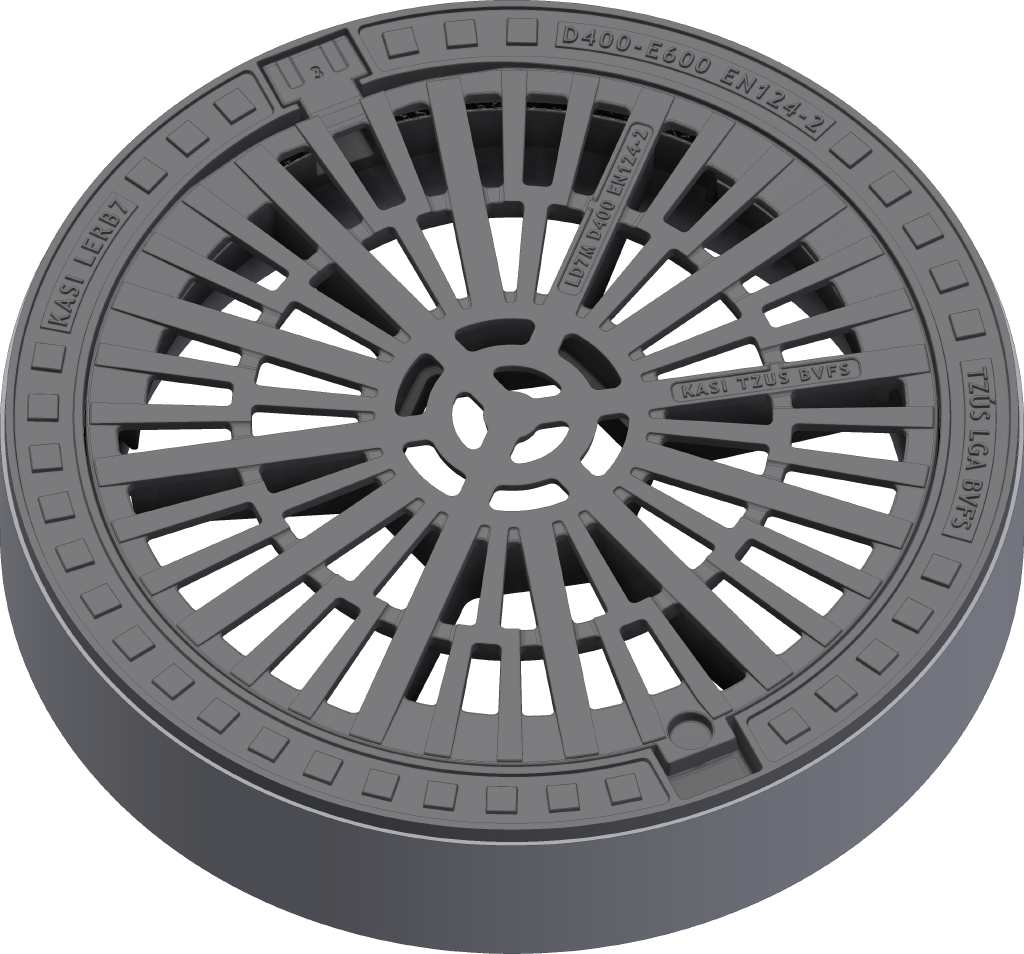

Inlet grille in cast-iron concrete frame
D400 - light traffic load
| Code | KDA7N |
| Material | Cast iron |
| Weight | 112 kg |
| Norm | EN124-2 |
| Package | 20 ks/pal |
| Load class | Light traffic load |
Poklop EUROPA 7 s pantem, víko litina kruhová vtoková mříž s otevřeným pantem, pružinové zajištění víka v rámu, D400, rám beton-litina v.160mm s osazením pro lapač, horizontální PUR tlumící vložka na rámu
Cover
- Machined lid seating surface to 0.3mm
- Hinge secured against removal from the frame
- Safety lock at 90?
- Lid weight 33kg
- Securing the lid in the frame with multi-point springs
Frame
- Cast-concrete frame with mounting for trap
- Frame height 160 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- only with UL7 three-arm trap
- Option of screw locking
- Suitable for places with light traffic load
- Lid safety lock at 90?
Damping insert
Max. opening angle
Anti-theft protection
rainwater drainage
