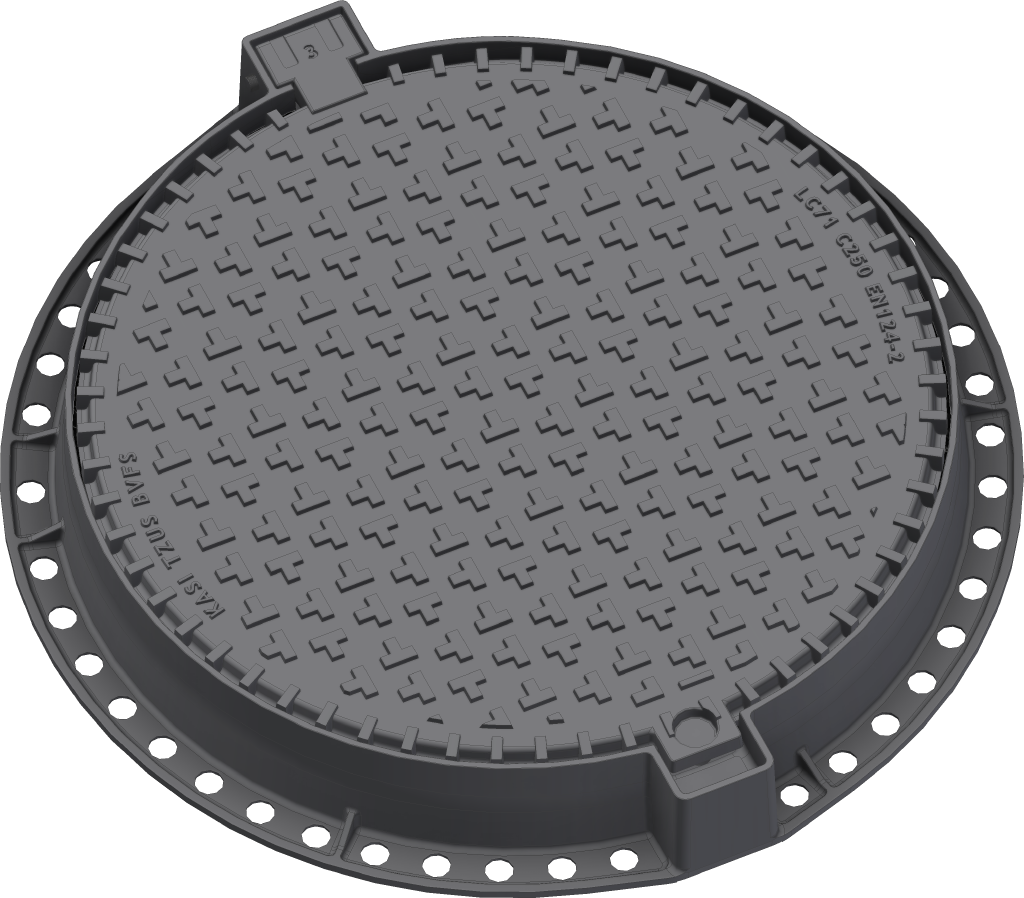

Manhole cover without ventilation in cast iron frame with foot

C250 - use max 0.5m in the roadway and truck parking lot

Code	KCLL73
Material	Cast iron
Weight	44 kg
Norm	EN124-2
Package	20 ks/pal

Poklop EUROPA 7 s pantem, víko litina bez ventilace s otevřeným pantem, pružinové zajištění víka v rámu, C250, rám litina patkový lehký v.100mm, horizontální PUR tlumící vložka na rámu

Cover

Machined lid seating surface to 0.3mm
Cast iron without venting with anti-slip design.
Hinge with possibility of removal from the frame
Safety lock at 90?
Custom theme/logo option

Frame

Cast iron frame with foot without shoulder for trap
Frame height 100 mm
Use with BAR-V and BAR adjustment rings
Integrated PUR damping insert with high resistance

Other

The cover is supplied without surface treatment - painted variants can be ordered
Option of screw locking
Lid safety lock at 90?
custom lid motif possible
