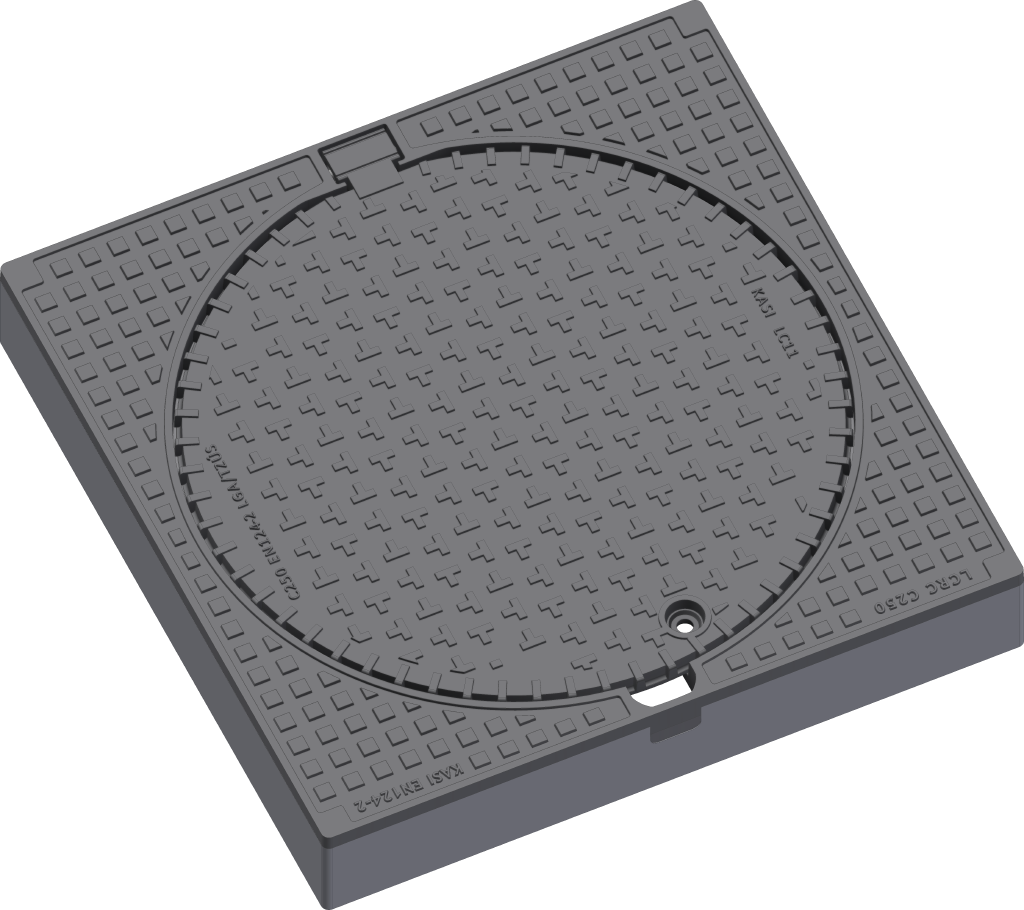

Manhole cover without ventilation in a square frame
C250 - use max 0.5m in the roadway and truck parking lot
| Code | KCC11 |
| Material | Concrete, Cast iron |
| Weight | 104 kg |
| Norm | EN124-2 |
| Package | 12 ks/pal |
without hinge, without shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- Cast iron without venting with anti-slip design.
- Hinge secured against removal from the frame
- Safety lock at 90?
- Custom theme/logo option
- Lid weight 28kg
Frame
- Frame height 125 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Option of screw locking
- Lid safety lock at 90?
- custom lid motif possible
Customer solutions
Damping insert
Max. opening angle
Anti-theft protection
