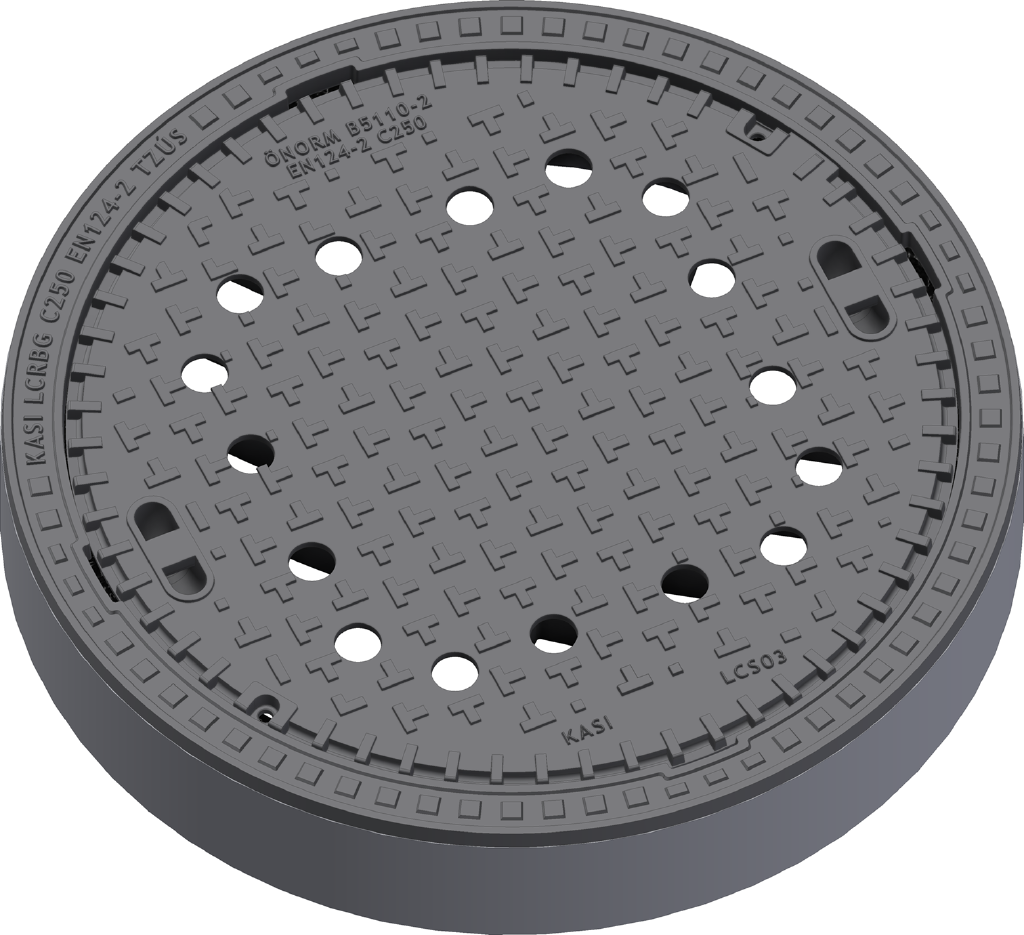

Manhole cover with ventilation in a cast-iron concrete frame
C250 - use max 0.5m in the roadway and truck parking lot
| Code | KCBG04 |
| Material | Concrete, Cast iron |
| Weight | 72 kg |
| Norm | EN124-2 |
| Package | 12 ks/pal |
cover without hinge, horizontal PUR shock-absorbing lining, without spring-loaded lid locking in frame
Cover
- Cast iron with ventilation and anti-slip design.
- Lid weight 26kg
- Custom theme/logo option
Frame
- Frame height 125 mm
- Use with BAR-V and BAR adjustment rings
- Integrated PUR damping insert with high resistance
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- custom lid motif possible
Customer solutions
Damping insert
