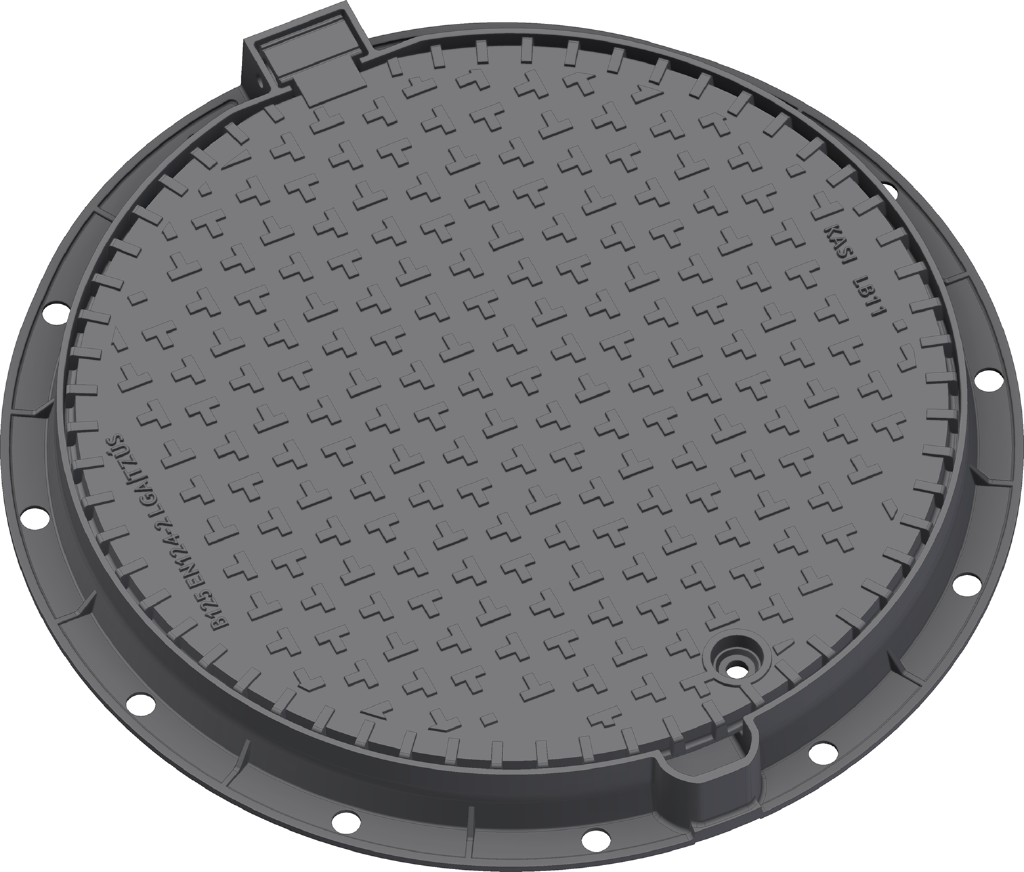

Manhole cover without ventilation in cast iron frame with foot
B125 - parking areas for passenger vehicles
| Code | KBP11B |
| Material | Cast iron |
| Weight | 36 kg |
| Norm | EN124-2 |
| Package | 20 ks/pal |
poklop s pantem, bez tlumící vložky, bez pružinového zajištění víka v rámu
Cover
- Cast iron without venting with anti-slip design.
- Hinge secured against removal from the frame
- Safety lock at 90?
- Custom theme/logo option
- Lid weight 24kg
Frame
- Cast iron frame with foot without shoulder for trap
- Frame height 70 mm
- Use with BAR-V and BAR adjustment rings
Other
- The cover is supplied without surface treatment - painted variants can be ordered
- Option of screw locking
- Lid safety lock at 90?
- custom lid motif possible
Customer solutions
Max. opening angle
Anti-theft protection
